Product Summary

The THS4012ID is a very high speed, single/dual, voltage feedback amplifier ideal for a wide range of applications. The THS4012ID offers very good ac performance with 290-MHz bandwidth, 310-V/ms slew rate, and 37-ns settling time (0.1%). The THS4012ID has a high output drive capability of 110 mA and draw only 7.8-mA supply current per channel. For applications requiring low distortion, the THS4012ID operates with a total harmonic distortion (THD) of –80 dBc at f = 1 MHz. For video applications, the THS4012ID offers 0.1 dB gain flatness to 70-MHz, 0.006% differential gain error, and 0.01° differential phase error.

Parametrics

THS4012ID absolute maximum ratings: (1)Supply voltage, VCC:±16.5 V; (2)Input voltage, VI: ±VCC; (3)Output current, IO: 175mA; (4)Differential input voltage, VID: ±4 V; (5)Continuous total power dissipation: See Dissipation Rating Table; (6)Maximum junction temperature, TJ: 150℃; (7)Operating free-air temperature, TA, THS401xC: 0 to 70℃; (8)THS401xI:–40 to 85℃; (9)THS4011M:–55 to 125℃; (10)Storage temperature, Tstg:–65 to 150℃; (11)Lead temperature, 1,6 mm (1/16 inch) from case for 10 seconds, D, DGN package: 300℃; (12)Lead temperature, 1,6 mm (1/16 inch) from case for 60 seconds, JG package: 300℃; (13)Case temperature for 60 seconds, FK package: 260℃.

Features

THS4012ID features: (1)Very High Speed; (2)Very Low Distortion THD = -80 dBc (f = 1 MHz, RL = 150Ω); (3)110 mA Output Current Drive (Typical); (4)7.5 nV/√￣Hz Voltage Noise; (5)Excellent Video Performance; (6)70 MHz Bandwidth (0.1 dB, G = 1); (7)0.006% Differential Gain Error; (8)0.01°Differential Phase Error; (9)±5V to ±15 V Supply Voltage; (10)Available in Standard SOIC, MSOP PowerPAD, JG, or FK Packages; (11)Evaluation Module Available.

Diagrams

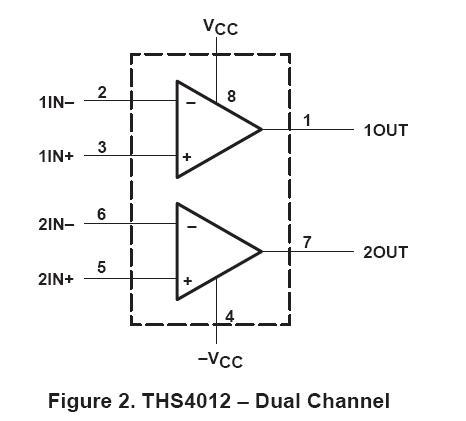

THS4012ID block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
THS4012ID
THS4012ID
Texas Instruments
High Speed Operational Amplifiers Dual 290MHz
Data Sheet
0-1: $4.82
1-25: $4.49
25-100: $4.05
100-250: $3.72
THS4012IDG4
THS4012IDG4
Texas Instruments
High Speed Operational Amplifiers Dual 290MHz
Data Sheet
0-1: $4.81
1-25: $4.06
25-100: $3.73
100-250: $3.40
THS4012IDGN
THS4012IDGN
Texas Instruments
High Speed Operational Amplifiers Dual 290MHz
Data Sheet
0-1: $5.08
1-25: $4.28
25-100: $3.93
100-250: $3.58
THS4012IDGNG4
THS4012IDGNG4
Texas Instruments
High Speed Operational Amplifiers 290-MHz Dual Lo-Dist Voltage-Feedback
Data Sheet
0-1: $5.08
1-25: $4.28
25-100: $3.93
100-250: $3.57
THS4012IDGNRG4
THS4012IDGNRG4
Texas Instruments
High Speed Operational Amplifiers 290-MHz Dual Lo-Dist Voltage-Feedback
Data Sheet
0-1885: $2.59
1885-2000: $2.50
2000-2500: $2.50
THS4012IDGNR
THS4012IDGNR
Texas Instruments
High Speed Operational Amplifiers 290-MHz Dual Lo-Dist Voltage-Feedback
Data Sheet
0-1885: $2.59
1885-2000: $2.50
2000-2500: $2.50
THS4012IDR
THS4012IDR
Texas Instruments
High Speed Operational Amplifiers 290-MHz Dual Lo-Dist Voltage-Feedback
Data Sheet
Negotiable
THS4012IDRG4
THS4012IDRG4
Texas Instruments
High Speed Operational Amplifiers 290-MHz Dual Lo-Dist Voltage-Feedback
Data Sheet
Negotiable
