THS3202D

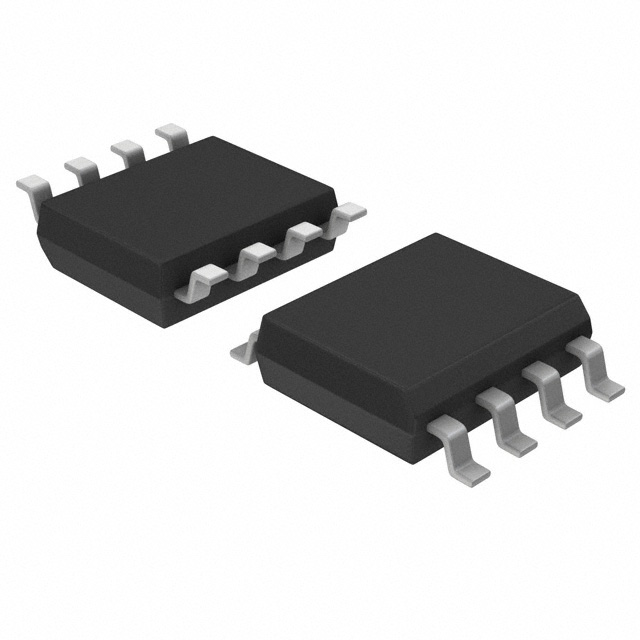

THS3202D, dual current-feedback amplifier, SO, 16.5V, 115mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.99~21.99 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.99~21.99

PartNumber:: THS3202D

Brand:: Texas Instruments - TI | Pack: SO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:THS3202D
US $3.99 - 21.99
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
P480A02

US $46.00 - 52.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The THS3202D is a dual current-feedback amplifier developed with BiCOM-II technology. Designed for low distortion with a high slew rate of 9000V/μs, the THS3202D is ideally suited for applications driving loads sensitive to distortion at high frequencies. The applications of the THS3202D include High-Speed Signal Processing, Test and Measurement Systems, High-Voltage ADC Preamplifier, RF and IF Amplifier Stages, Professional Video.

Parametrics

THS3202D absolute maximum ratings: (1)Supply voltage, VS: 16.5 V; (2)Input voltage, VI: ±VS; (3)Differential input voltage, VID: ±3 V; (4)Output current, IO: 175mA; (5)Maximum junction temperature, TJ: +150℃; (6)Operating free-air temperature range, TA: –40 to +85℃; (7)Storage temperature range, TSTG: –65 to +150℃.

Features

THS3202D features: (1)Unity-Gain Bandwidth: 2 GHz; (2)High Slew Rate: 9000 V/μs; (3)High Output Current: ±115 mA into 20Ω RL; (4)Power-Supply Voltage Range: 6.6 V to 15 V.
