Product Summary
The THS3125ID is a low-noise, high-speed current feedback amplifier, with high output current drive. This makes them ideal for any application that requires low distortion over a wide frequency with heavy loads. The THS3125ID can drive four serially terminated video lines while maintaining a differential gain error less than 0.03%. The applications of the THS3125ID include Video Distribution, Instrumentation, Line Drivers, Motor Drivers, Piezo Drivers.
Parametrics
THS3125ID absolute maximum ratings: (1)Supply voltage, VCC+ to VCC: 33 V; (2)Input voltage: ± VCC; (3)Output current (see Note 1): 275 mA; (4)Differential input voltage: ±4V; (5)Maximum junction temperature: 150℃; (6)Operating free-air temperature, TA: Commercial: 0 to 70℃; (7)Industrial: -40 to 85℃; (8)Storage temperature, Tstg : Commercial: -65 to 125℃; (9)Industrial: -65 to 125℃; (10)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 300℃.
Features
THS3125ID features: (1)Low Noise; (2)High Output Current, 450mA; (3)High Speed; (4)Wide Output Swing; (5)Low Distortion; (6)Low Power Shutdown Mode (THS3125); (7)Standard SOIC, SOIC PowerPAD, and TSSOP PowerPAD Package.

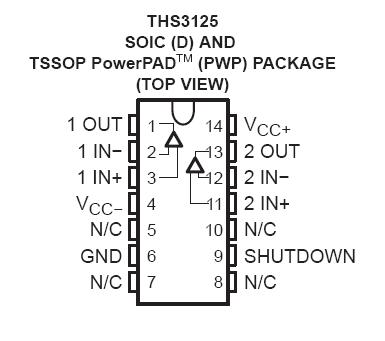

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 THS3125ID |
Texas Instruments |
High Speed Operational Amplifiers Dual High Output Current 120-MHz |
Data Sheet |
|
|
||||||||||||
|
THS3125IDG4 |
Texas Instruments |
High Speed Operational Amplifiers Dual High Output Current 120-MHz |
Data Sheet |
|
|
||||||||||||
|
THS3125IDR |
Texas Instruments |
High Speed Operational Amplifiers Dual High Output Current 120-MHz |
Data Sheet |
Negotiable |
|
||||||||||||
|
THS3125IDRG4 |
Texas Instruments |
High Speed Operational Amplifiers Dual High Output Current 120-MHz |
Data Sheet |
Negotiable |
|
||||||||||||
