Product Summary
The THS3110IDGN is a low-noise, high-voltage, current-feedback amplifier. The THS3110IDGN is designed to operate over a wide supply range of ±5 V to ±15 V for today’s high performance applications. The applications of the THS3110IDGN include Video Distribution, Power FET Driver, Pin Driver, Capacitive Load Driver.
Parametrics
THS3110IDGN absolute maximum ratings: (1)Supply voltage, VS- to VS+: 33 V; (2)Input voltage, VI: ± VS; (3)Differential input voltage, VID: ±4V; (4)Output current, IO: 300mA; (5)Continuous power dissipation: See Dissipation Ratings Table; (6)Maximum junction temperature, TJ: 150℃; (7)Maximum junction temperature, continuous operation, long term reliability, TJ: 125℃; (8)Commercial: 0 to 70℃; (9)Operating free-air temperature, TA Industrial: -40 to 85℃; (10)Storage temperature, Tstg: -65 to 125℃; (11)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 300℃.
Features
THS3110IDGN features: (1)Low Noise; (2)High Output Current Drive: 260 mA; (3)High Slew Rate: 1300 V/μs (RL = 100Ω, VO = 8 VPP); (4)Wide Bandwidth: 90 MHz (G = 2, RL = 100Ω); (5)Wide Supply Range: ±5V to ±15V; (6)Power-Down Feature: (THS3110 Only).

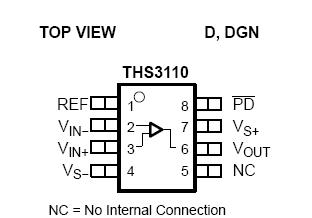

Diagrams

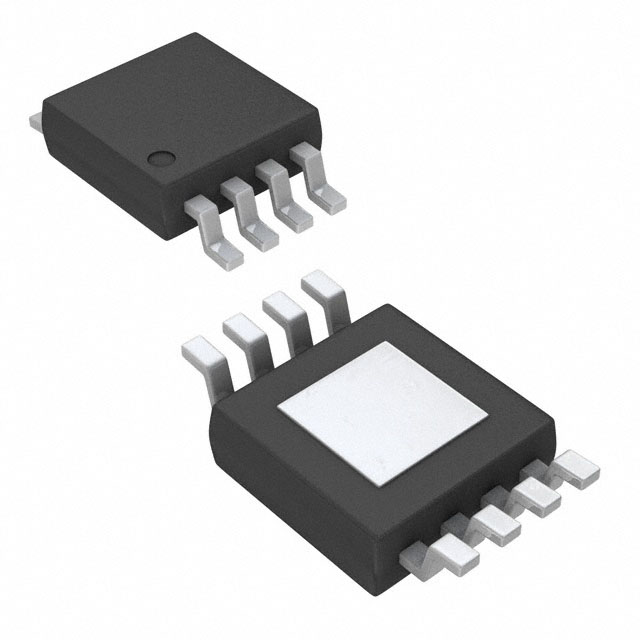

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 THS3110IDGN |
Texas Instruments |
High Speed Operational Amplifiers Sngl Lo-Noise Hi-Vlt Current-Feedback |
Data Sheet |
|
|
||||||||||||
|
THS3110IDGNG4 |
Texas Instruments |
High Speed Operational Amplifiers Sngl Lo-Noise Hi-Vlt Current-Feedback |
Data Sheet |
|
|
||||||||||||
|
THS3110IDGNR |
Texas Instruments |
High Speed Operational Amplifiers Sngl Lo-Noise Hi-Vlt Current-Feedback |
Data Sheet |
|
|
||||||||||||
|
THS3110IDGNRG4 |
Texas Instruments |
High Speed Operational Amplifiers Sngl Lo-Noise Hi-Vlt Current-Feedback |
Data Sheet |
|
|
||||||||||||
