Product Summary

The THS3095D is a high-voltage, low-distortion, high-speed, current-feedback amplifier. The THS3095D is designed to operate over a wide supply range of ±5 V to ±15 V for applications requiring large, linear output signals such as Pin, Power FET, and VDSL line drivers. The applications of the THS3095D include High-Voltage Arbitrary Waveform, Power FET Driver, Pin Driver, VDSL Line Driver.

Parametrics

THS3095D absolute maximum ratings: (1)VS- to VS+ Supply voltage: 33 V; (2)VI Input voltage: ± VS; (3)VID Differential input voltage: ±4V; (4)IO Output current: 350mA; (5)Continuous power dissipation: See Dissipation Ratings Table; (6)TJ Maximum junction temperature: 150℃; (7)Tstg Storage temperature: -65 to 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 300℃.

Features

THS3095D features: (1)Low Distortion; (2)77 dBc HD2 at 10 MHz, RL = 1kΩ; (3)69 dBc HD3 at 10 MHz, RL = 1kΩ; (4)Low Noise; (5)High Slew Rate: 7300 V/μs (G = 5, VO = 20 VPP); (6)Wide Bandwidth: 210 MHz (G = 2, RL = 100Ω); (7)High Output Current Drive: ±250mA; (8)Wide Supply Range: ±5 V to ±15 V; (9)Power-Down Feature: (THS3095 Only).

Diagrams

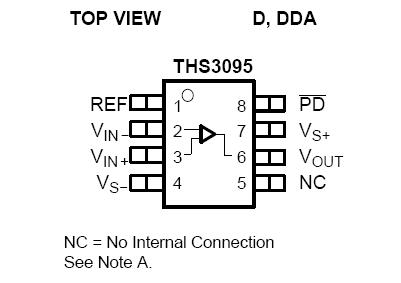

THS3095D Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
THS3095D
THS3095D
Texas Instruments
High Speed Operational Amplifiers Single Lo-Distort Current Feedback
Data Sheet
0-1: $4.02
1-25: $3.39
25-100: $3.11
100-250: $2.84
THS3095DDA
THS3095DDA
Texas Instruments
High Speed Operational Amplifiers Single Lo-Distort Current Feedback
Data Sheet
0-1: $4.29
1-25: $4.00
25-100: $3.61
100-250: $3.31
THS3095DG4
THS3095DG4
Texas Instruments
High Speed Operational Amplifiers Single Lo-Distort Current Feedback
Data Sheet
0-1: $4.02
1-25: $3.39
25-100: $3.11
100-250: $2.84
THS3095DDAG4
THS3095DDAG4
Texas Instruments
High Speed Operational Amplifiers Single Lo-Distort Current Feedback
Data Sheet
0-1: $4.28
1-25: $3.61
25-100: $3.32
100-250: $3.02
THS3095DDARG3
THS3095DDARG3
Texas Instruments
High Speed Operational Amplifiers Single Lo-Distort Current Feedback
Data Sheet
0-1880: $2.20
1880-2000: $2.11
2000-2500: $2.11
THS3095DDAR
THS3095DDAR
Texas Instruments
High Speed Operational Amplifiers Single Lo-Distort Current Feedback
Data Sheet
0-1880: $2.20
1880-2000: $2.11
2000-2500: $2.11
THS3095DR
THS3095DR
Texas Instruments
High Speed Operational Amplifiers Single Lo-Distort Current Feedback
Data Sheet
Negotiable
THS3095DRG4
THS3095DRG4
Texas Instruments
High Speed Operational Amplifiers Single Lo-Distort Current Feedback
Data Sheet
Negotiable
