Product Summary
The THS1030IPW is a CMOS, low power, 10-bit, 30 MSPS analog-to-digital converter (ADC) that can operate with a supply range from 2.7 V to 3.3 V. The THS1030IPW has been designed to give circuit developers more flexibility. The analog input to the THS1030IPW can be either single-ended or differential. The THS1030IPW provides a wide selection of voltage references to match the user’s design requirements. For more design flexibility, the internal reference can be bypassed to use an external reference to suit the dc accuracy and temperature drift requirements of the application.
Parametrics
THS1030IPW absolute maximum ratings: (1)Supply voltage: AVDD to AGND, DVDD to DGND:–0.3 to 6.5 V; (2)AGND to DGND: –0.3 to 0.3 V; (3)AVDD to DVDD: –6.5 to 6.5 V; (4)Mode input MODE to AGND: –0.3 to AVDD + 0.3 V; (5)Reference voltage input range REFTF, REFTB, REFTS, REFBS to AGND :–0.3 to AVDD + 0.3 V; (6)Analog input voltage range AIN to AGND:–0.3 to AVDD + 0.3 V; (7)Reference input VREF to AGND:–0.3 to AVDD + 0.3 V; (8)Reference output VREF to AGND:–0.3 to AVDD + 0.3 V; (9)Clock input CLK to AGND:–0.3 to AVDD + 0.3 V; (10)Digital input to DGND: –0.3 to DVDD + 0.3 V; (11)Digital output to DGND:–0.3 to DVDD + 0.3 V; (12)Operating junction temperature range, TJ: 0 to 150℃; (13)Storage temperature range, TSTG: –65 to 150℃; (14)Lead temperature 1,6 mm (1/16 in) from case for 10 seconds: 300℃.
Features
THS1030IPW features: (1)10-Bit Resolution 30 MSPS Analog-to-Digital Converter:; (2)Configurable Input: Single-Ended or Differential; (3)Differential Nonlinearity: ±0.3 LSB; (4)Signal-to-Noise: 57 dB; (5)Spurious Free Dynamic Range: 60 dB; (6)Adjustable Internal Voltage Reference; (7)Out-of-Range Indicator; (8)Power-Down Mode; (9)Pin Compatible with TLC876.

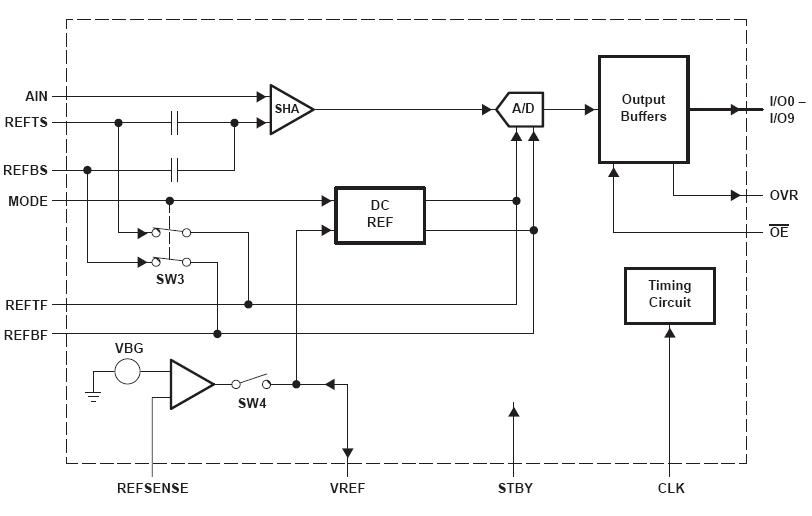

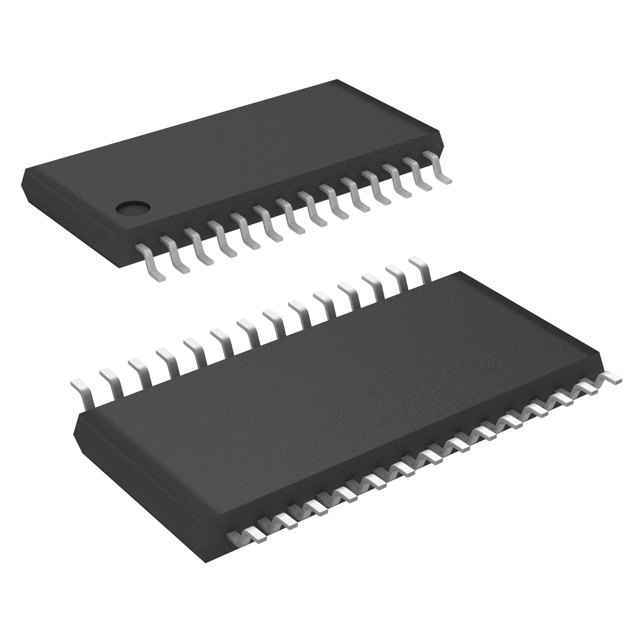

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 THS1030IPW |
Texas Instruments |
ADC (A/D Converters) _ |
Data Sheet |
|
|
||||||||||||
|
THS1030IPWG4 |
Texas Instruments |
ADC (A/D Converters) 10-Bit 30 MSPS 1-Ch Pin Comp |
Data Sheet |
|
|
||||||||||||
|
THS1030IPWR |
Texas Instruments |
ADC (A/D Converters) 10-Bit 30 MSPS 1-Ch Pin Comp |
Data Sheet |
|
|
||||||||||||
|
THS1030IPWRG4 |
Texas Instruments |
ADC (A/D Converters) 10-Bit 30 MSPS 1-Ch Pin Comp |
Data Sheet |
|
|
||||||||||||
