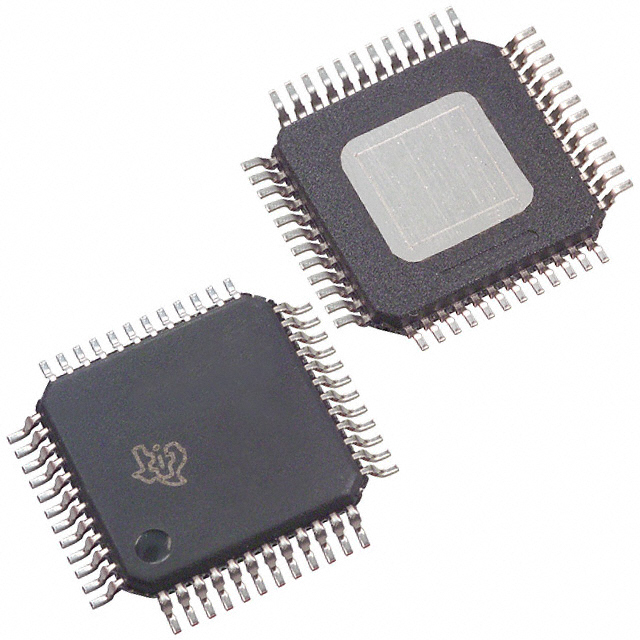

Product Summary
The TAS5709PHPR is a 20-W, efficient, digital audio power amplifier for driving stereo bridge-tied speakers. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The TAS5709PHPR accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers. The TAS5709PHPR is a slave-only device receiving all clocks from external sources.
Parametrics
TAS5709PHPR absolute maximum ratings: (1)DVDD, AVDD: –0.3 to 3.6 V; (2)PVDD_X: –0.3 to 30 V; (3)OC_ADJ: –0.3 to 4.2 V; (4)3.3-V digital input: –0.5 to DVDD + 0.5 V; (5)Input voltage; (6)5-V tolerant(2) digital input (except MCLK): –0.5 to DVDD + 2.5(3) V; (7)5-V tolerant MCLK input: –0.5 to AVDD + 2.5(3) V; (8)OUT_x to PGND_X: 32V; (9)BST_x to PGND_X: 43V; (10)Input clamp current, IIK: ±20mA; (11)Output clamp current, IOK: ±20mA; (12)Operating free-air temperature: 0 to 85℃; (13)Operating junction temperature range: 0 to 150℃; (14)Storage temperature range, Tstg: –40 to 125℃.
Features
TAS5709PHPR features: (1)Serial Control Interface Operational Without MCLK; (2)Factory-Trimmed Internal Oscillator for automatic rate detection; (3)Surface Mount, 48-PIN, 7mm × 7mm; (4)HTQFP Package; (5)Thermal and Short-Circuit Protection; (6)20W Into an 8Ω Load From an 18V Supply; (7)Wide PVDD Range, From 8 V to 24 V; (8)Requires Only 3.3 V and PVDD.

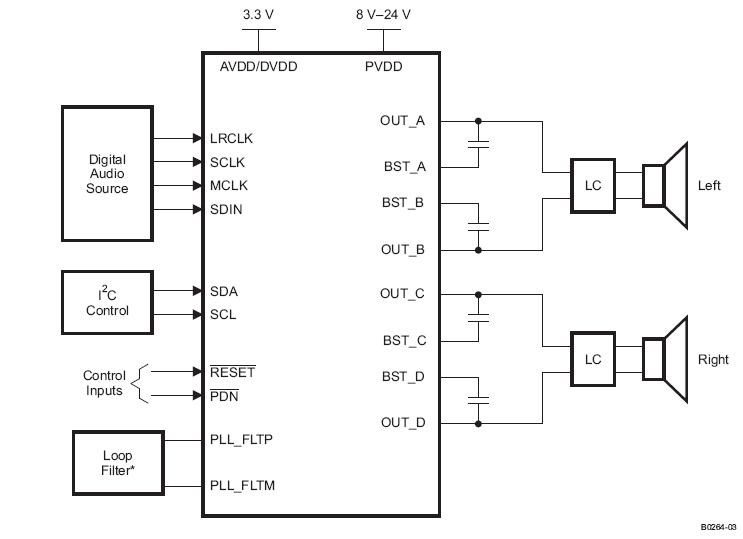

Diagrams
