Product Summary
The STM32L152VBT6 is an evaluation board. It is a complete demonstration and development platform for STMicroelectronics’ARM cortex-M3 core-based STM32L152VBT6 microcontroller supporting two I2C, two SPI and three USART channels, 12-bit ADC, 12-bit DAC, 16 KB internal SRAM and 128 KB Flash, USB FS, LCD controller, touch sensing and JTAG debugging support.
Features
STM32F405RGT6 features: (1)Four 5 V power supply options; (2)Audio speaker and microphone connected to DAC and ADC of STM32L152VBT6; (3)2 GByte or more SPI interface MicroSD CardTM; (4)I2C compatible serial interface temperature sensor; (5)RS-232 communication; (6)IrDA transceiver; (7)JTAG and trace debug support, ST-LINK/V2 embedded; (8)240x320 TFT color LCD connected to SPI interface of STM32L152VBT6; (9)Joystick with 4-direction control and selector; (10)Reset button; (11)Tamper or Key button; (12)4 color user LEDs and 3 LEDs as MCU power range indicator; (13)MCU consumption measurement circuit; (14)LCD glass 32 x 4 segments connected to LCD controller in STM32L152VBT6; (15)Extension connector for daughterboard or wrapping board; (16)MCU voltage choice of 3.3 V or adjustable from 1.65 V to 3.6 V; (17)USB FS connector; (18)Two touch sensing buttons; (19)Light dependent resistor (LDR); (20)Potentiometer.
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

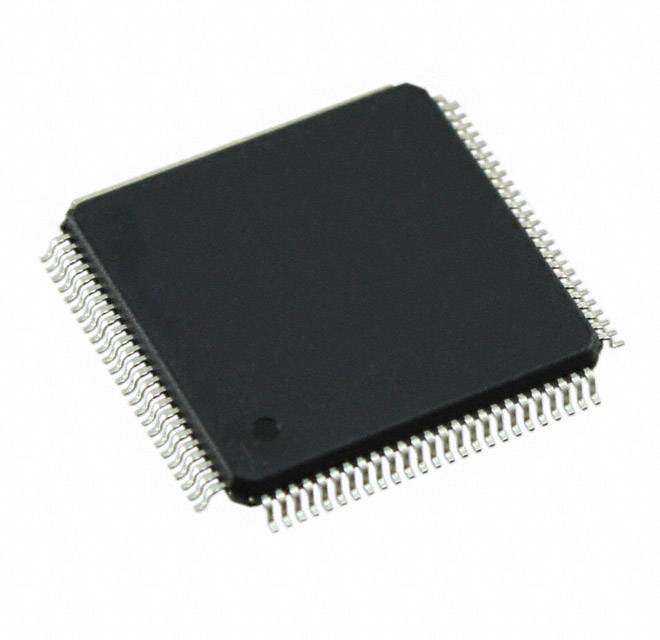

 STM32L152VBT6 |
STMicroelectronics |
ARM Microcontrollers (MCU) 32-Bit Arm Cortex M3 128kb LCD Ultralow |
Data Sheet |
|
|
||||||||||||
|
STM32L152VBT6TR |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT ARM Cortex M3 Low Power 128kB |
Data Sheet |
|
|
||||||||||||
