Product Summary
The SMV1213-004LF is a silicon hyperabrupt junction varactor diode. The SMV1213-004LF is designed for use in Voltage Controlled Oscillators (VCOs) with a low tuning voltage operation. The SMV1213-004LF is characterized for capacitance and resistance over temperature. The applications of the SMV1213-004LF include Low tuning voltage VCOs, High-volume commercial systems.
Parametrics
SMV1213-004LF absolute maximum ratings: (1)Reverse voltage VR: 12V; (2)Forward current IF: 20mA; (3)Power dissipation PDIS: 250mW; (4)Operating temperature TOP:–55 to +125℃; (5)Storage temperature TSTG:–55 to +150℃.
Features
SMV1213-004LF features: (1)High capacitance ratio: C1V/C4V = 5 typical; (2)Packages rated MSL1, 260℃ per JEDEC J-STD-020.

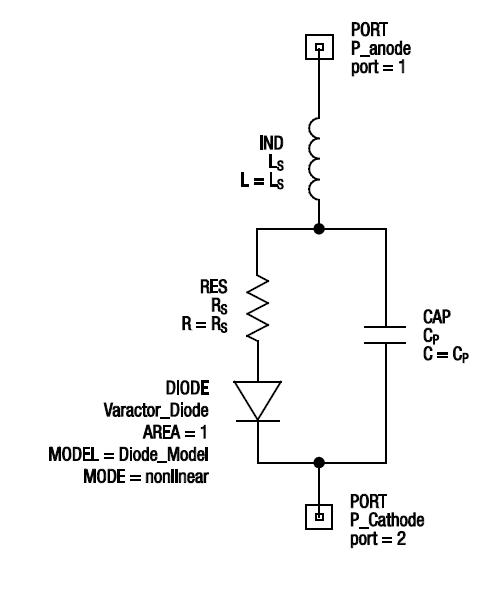

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMV1213-004LF |
Skyworks Solutions, Inc. |
Varactor Diodes Ls=1.4nH SOT-23 Common Cathode |
Data Sheet |
|
|
||||||||||||
