Product Summary
The SMS3923-005LF is a 20 rated, low-cost plastic packaged Schottky diode. It is designed for general purpose use in RF applications. The SMS3923-005LF is fully characterized, including SPICE model parameters, and deliver tight parameter distribution, which minimizes performance variability. The applications of the SMS3923-005LF include High volume commercial detectors, mixers, switches, and digital pulse forming systems.
Parametrics
SMS3923-005LF absolute maximum ratings: (1)Reverse voltage c: Rated VB V; (2)Forward current IF: 50mA; (3)Power dissipation @ 25℃ lead temperature PD: 75mW; (4)Storage temperature TSTG:–65 to +150℃; (5)Operating temperature TA: –65 to +150℃; (6)Junction temperature TJ: +150℃.
Features
SMS3923-005LF features: (1)Tight parameter distribution; (2)Available as singles, pairs, and dual series pairs; (3)100 percent DC tested; (4)Packages rated MSL1, 260℃ per JEDEC J-STD-020.

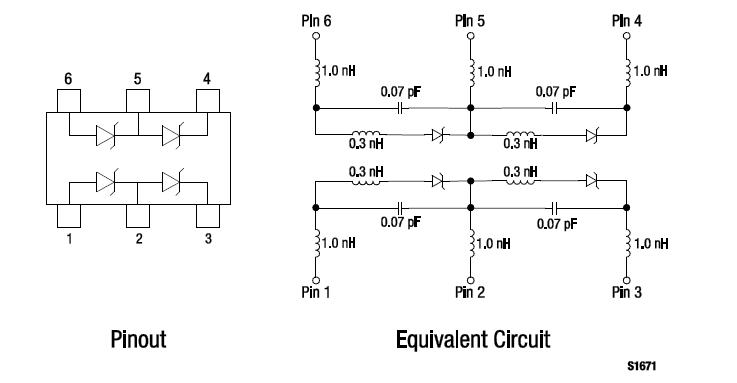

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMS3923-005LF |
|
DIODE SCHOTTKY 20V SOT-23 |
Data Sheet |
|
|
||||||||||||
