Product Summary

The SGA-4463Z is a high performance SiGe HBT MMIC Amplifier. A Darlington configuration featuring one-micron emitters provides high FT and excellent thermal performance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction non-linearities results in higher suppression of intermodulation products. Only two DC-blocking capacitors, a bias resistor, and an optional RF choke are required for operation. The applications of the SGA-4463Z include PA Driver Amplifier, Cellular, PCS, GSM, UMTS, IF Amplifier, Wireless Data, Satellite.

Parametrics

SGA-4463Z absolute maximum ratings: (1)Max Device Current (ID): 90mA; (2)Max Device Voltage (VD): 5V; (3)Max RF Input Power: +18dBm; (4)Max Junction Temp (TJ): +150℃; (5)Operating Temp Range (TL): -40 to +85℃; (6)Max Storage Temp: +150℃.

Features

SGA-4463Z features: (1)High Gain: 17dB at 1950MHz; (2)Cascadable 50Ω; (3)Operates from Single Supply; (4)Low Thermal Resistance Package.

Diagrams

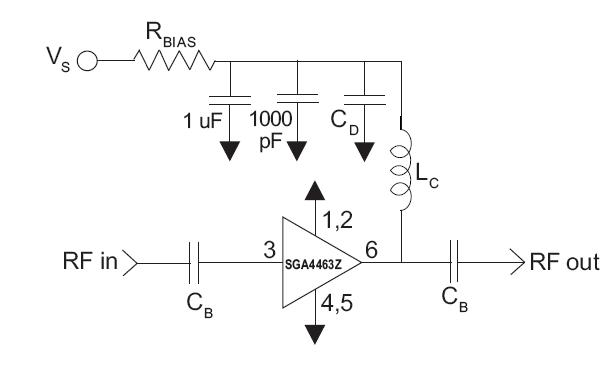

SGA-4463Z block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SGA-4463Z
SGA-4463Z

IC AMP HBT SIGE 3500MHZ SOT-363
Data Sheet
0-1: $1.32
1-10: $1.19
10-25: $1.07
25-100: $0.96
100-250: $0.85
250-500: $0.75
500-1000: $0.62
