Product Summary
The SGA-0363Z is a high performance SiGe HBT MMIC Amplifier. A Darlington configuration featuring one-micron emitters provides high FT and excellent thermal perfomance. The heterojunction of the SGA-0363Z increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction non-linearities results in higher suppression of intermodulation products. Only two DC-blocking capacitors, a bias resistor and an optional RF choke are required for operation. The applications of the SGA-0363Z include PA Driver Amplifier, Cellular, PCS, GSM, UMTS, IF Amplifier, Wireless Data, Satellite.
Parametrics
SGA-0363Z absolute maximum ratings: (1)Device Current (ID): 22 mA; (2)Device Voltage (VD): 6 V; (3)RF Input Power: -5 dBm; (4)Junction Temp (TJ): +150℃; (5)Operating Temp Range (TL): -40 to +85℃; (6)Storage Temp: +150℃.
Features
SGA-0363Z features: (1)DC to 5000MHz Operation; (2)Single Voltage Supply; (3)Low Current Draw: 11mA at 2.5V Typ.; (4)High Output Intercept: 14dBm Typ. at 1950MHz.

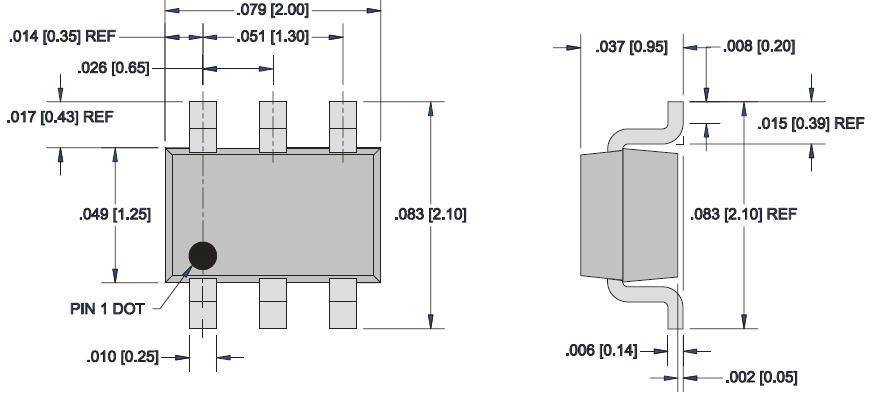

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SGA-0363Z |
|
IC AMP HBT SIGE 5000MHZ SOT-363 |
Data Sheet |
|
|
||||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||||
|
SGA-0163 |
|
IC AMP HBT SIGE 4500MHZ SOT-363 |
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
SGA-0163(Z) |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
SGA-0163Z |
|
IC AMP HBT SIGE 4500MHZ SOT-363 |
Data Sheet |
|
|
||||||||||||||||||
|
SGA-0363 |
|
IC AMP HBT SIGE 5000MHZ SOT-363 |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
SGA-0363(Z) |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
SGA-0363Z |
|
IC AMP HBT SIGE 5000MHZ SOT-363 |
Data Sheet |
|
|
||||||||||||||||||
