Product Summary

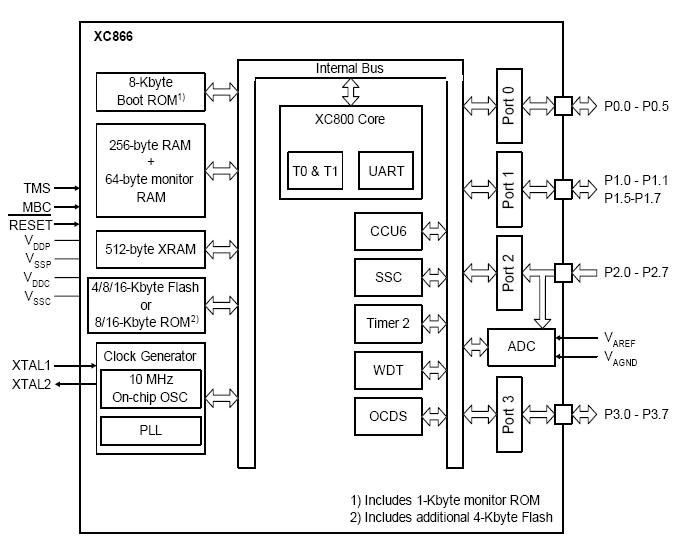

The SAK-XC866L-4FRA BE is a 8-Bit Single-Chip Microcontroller. The SAK-XC866L-4FRA BE is based on a high-performance 8-bit Central Processing Unit (CPU) that is compatible with the standard 8051 processor. While the standard 8051 processor is designed around a 12-clock machine cycle, the XC866 CPU uses a 2-clock machine cycle. This allows fast access to ROM or RAM memories without wait state. Access to the Flash memory, however, requires an additional wait state (one machine cycle). The instruction set consists of 45% one-byte, 41% two-byte and 14% three-byte instructions. The SAK-XC866L-4FRA BE provides a range of debugging features, including basic stop/start, single-step execution, breakpoint support and read/write access to the data memory, program memory and SFRs.

Parametrics

SAK-XC866L-4FRA BE absolute maximum ratings: (1)Ambient temperature TA: -40 to 125℃; (2)Storage temperature TST: -65 to 150℃; (3)Junction temperature TJ: -40 to 150℃; (4)Voltage on power supply pin with respect to VSS VDDP: -0.5 to 6V; (5)Voltage on core supply pin with respect to VSS VDDC: -0.5 to 3.25 V; (6)Voltage on any pin with respect to VSS VIN: -0.5 to VDDP+0.5 or; (7)max. 6V; (8)Input current on any pin during overload condition IIN: -10 to 10mA; (9)Absolute sum of all input currents during overload condition; (10)∑|IIN|: 50mA.

Features

SAK-XC866L-4FRA BE features: (1)High-performance XC800 Core; (2)On-chip memory; (3)I/O port supply at 3.3 V/5.0 V and core logic supply at 2.5 V (generated by embedded voltage regulator); (4)Reset generation; (5)On-chip OSC and PLL for clock generation; (6)Power saving modes; (7)Programmable 16-bit Watchdog Timer (WDT); (8)Capture/compare unit for PWM signal generation (CCU6); (9)Full-duplex serial interface (UART); (10)Synchronous serial channel (SSC).
