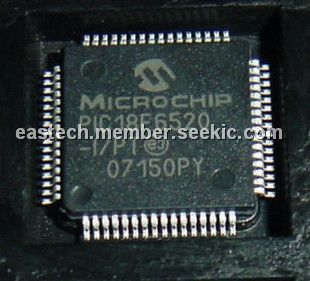

PIC18F6520-I/PT

QFP, 64-Pin, 256 Kbit to 1 Mbit, enhanced flash microcontroller, 16KX16, Power-on Reset

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.40~7.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.40~7.10

PartNumber:: PIC18F6520-I/PT

Brand:: Microchip Technology - Microchip | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-09

From Other Seller

Part Number:PIC18F6520-I/PT
US $4.40 - 7.10
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
TDA7360

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PIC18F6520-I/PT is a 64-Pin high-performance, 256 Kbit to 1 Mbit enhanced flash microcontroller with A/D.

Parametrics

PIC18F6520-I/PT absolute maximum ratings: (1)Ambient temperature under bias: -55 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR and RA4): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +5.5V; (5)Voltage on MCLR with respect to VSS (Note 2): 0V to +13.25V; (6)Voltage on RA4 with respect to Vss: 0V to +8.5V; (7)Total power dissipation (Note 1): 1.0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA; (14)Maximum current sunk by all ports: 200mA; (15)Maximum current sourced by all ports: 200 mA.

Features

PIC18F6520-I/PT features: (1)High-Performance RISC CPU; (2)100,000 erase/write cycle Enhanced Flash program memory typical; (3)1,000,000 erase/write cycle Data EEPROM memory typical; (4)1 second programming time; (5)Flash/Data EEPROM Retention: > 40 years; (6)Self-reprogrammable under software control; (7)Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (8)Watchdog Timer (WDT) with its own On-Chip RC Oscillator for reliable operation; (9)Programmable code protection; (10)Power saving Sleep mode.
