Product Summary
The OPA627AU is an operational amplifier which provides a new level of performance in a precision FET op amp. It has lower noise, lower offset voltage, and much higher speed. It is useful in a broad range of precision and high speed analog circuitry. The OPA627AU is fabricated on a high-speed, dielectrically-isolated complementary NPN/PNP process. It operates over a wide range of power supply voltage: ±4.5V to ±18V.
Parametrics
OPA627AU absolute maximum ratings:(1)supply voltage:±18V;(2)input voltage range:+VS+2V to -VS-2V;(3)differential input range: total VS+4V;(4)power dissipation:1000mW;(5)operating temperature:-40℃ to +125℃;(6)storage temperature:-40℃ to +125℃;(7)junction temperature:+150℃;(8)lead temperature (soldering, 10s):+300℃;(9)lead temperature SOlC (soldering, 3s):+260℃.
Features
OPA627AU features: (1) low Vos: 100uV max.; (2) low drift: 0.8uV/℃ max.; (3) low Ib: 5pA max.; (4) unity-gain stable. And it can be used in precision instrumentation, fast data acquisition, DAC output amplifier, optoelectronics, sonar and ultrasound, high-impedance sensor amps, high performance audio circuit and active filters.

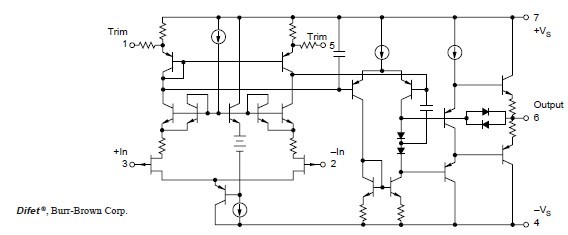

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() OPA627AU |
![]() Texas Instruments |
![]() High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() OPA627AU/2K5 |
![]() Texas Instruments |
![]() High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() OPA627AUG4 |
![]() Texas Instruments |
![]() High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() OPA627AUE4 |
![]() Texas Instruments |
![]() High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() OPA627AU/2K5E4 |
![]() Texas Instruments |
![]() High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
![]() Data Sheet |
![]()
|
|
