Product Summary

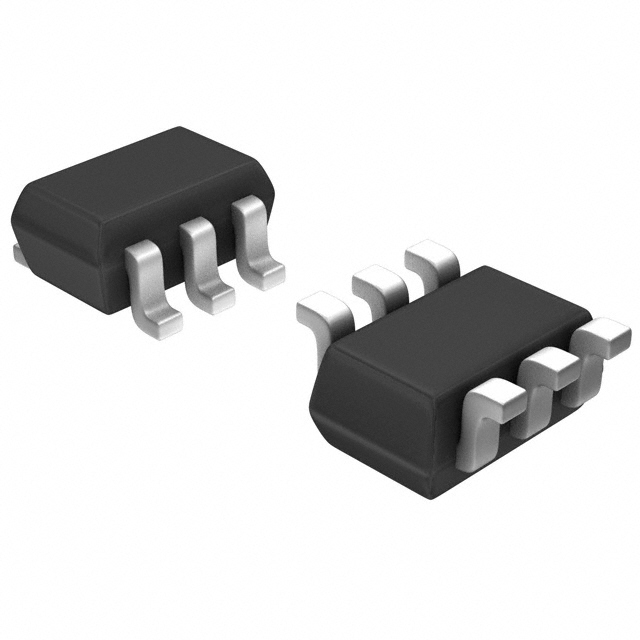

The OPA358AIDCKR is a 3V Single-Supply, 80MHz High-Speed Op Amp in SC70. The high-speed OPA358AIDCKR amplifier is optimized for 3V single-supply operation. The output typically swings within 5mV of GND with a 150Ω load connected to GND. The input common-mode range includes GND and swings to within 1V of the positive power supply. The OPA358AIDCKR offers excellent video performance: 0.5dB gain flatness is 25MHz, differential gain is 0.3%, and differential phase is 0.7°. The applications of the OPA358AIDCKR are (1)digital still cameras; (2)camera phones; (3)digital media players; (4)digital video cameras; (5)set-top-box video filters; (6)optical power monitoring; (7)transimpedance amplifiers; (8)automatic test equipment.
Parametrics
OPA358AIDCKR absolute maximum ratings: (1)Supply Voltage, V+ to V-: +3.6V; (2)Signal Input Terminals, Voltage: (V-) -0.5V to (V+) + 0.5V; (3)Signal Input Terminals, Current: ±10mA; (4)Output Short-Circuit: Continuous; (5)Operating Temperature: -40 to +85℃; (6)Storage Temperature: -65 to +150℃; (7)Junction Temperature: +160℃; (8)Lead Temperature (soldering, 10s): +300℃.
Features
OPA358AIDCKR features: (1)high bandwidth: 80MHz; (2)high slew rate: 55V/μs; (3)excellent video performance; (4)input range includes ground; (5)rail-to-rail output; (6)shutdown current: < 5μA; (7)low quiescent current: 5.2mA; (8)single-supply operating range: +2.7V to +3.3V; (9)MicroSIZE package: SC70-6.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA358AIDCKR |
Texas Instruments |
High Speed Operational Amplifiers 3V Single Supply 80MHz High-Speed |
Data Sheet |
|
|
||||||||
|
OPA358AIDCKRG4 |
Texas Instruments |
High Speed Operational Amplifiers 3V Single Supply 80MHz High-Speed |
Data Sheet |
|
|
||||||||
