Product Summary
The OPA2544T is a dual high-voltage/high-current operational amplifier suitable for driving a wide variety of high power loads. It provides 2A output current and power supply voltage range extends to ±35V. The applications of the OPA2544T are (1)motor driver; (2)programmable power supply; (3)servo amplifier; (4)valves, actuator driver; (5)magnetic deflection coil driver; (6)audio amplifier.
Parametrics
OPA2544T absolute maximum ratings: (1)Supply Voltage, V+ to V–: 70V; (2)Input Voltage: (V–) –0.7V to (V+) +0.7V; (3)Operating Temperature: –55 to +125℃; (4)Storage Temperature:–40 to +125℃; (5)Junction Temperature: 150℃; (6)Lead Temperature (soldering, –10s): 300℃.
Features
OPA2544T features: (1)high output current: 2A min; (2)wide power supply range:±10V to ±35V; (3)slew rate: 8V/μs; (4)internal current limit; (5)thermal shutdown protection; (6)FET input: IB = 50pA max; (7)11-lead plastic package.

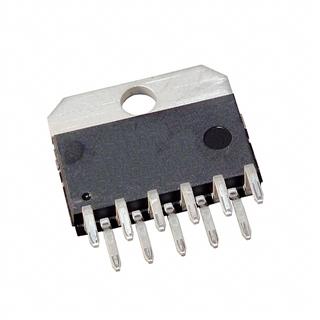

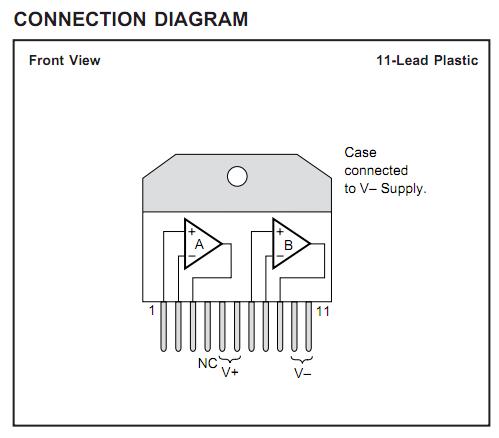

Diagrams
