Product Summary
The OP413ESZ is a single supply operational amplifier. It features both low noise and drift. It has been designed for systems with internal calibration. Often these processor-based systems are capable of calibrating corrections for offset and gain, but they cannot correct for temperature drifts and noise. Optimized for these parameters, the OP413ESZ can be used to take advantage of superior analog performance combined with digital correction. Many systems using internal calibration operate from unipolar supplies, usually either +5 volts or +12 volts. The OP413ESZ is designed to operate from single supplies from +4 volts to +36 volts, and to maintain its low noise and precision performance. The applications of the OP413ESZ include Digital Scales, Multimedia, Strain Gages, Battery Powered Instrumentation, and Temperature Transducer Amplifier.
Parametrics
OP413ESZ absolute maximum ratings: (1)Supply Voltage:±18 V; (2)Input Voltage:±18 V; (3)Differential Input Voltage:±10 V; (4)Output Short-Circuit Duration to GND: Indefinite; (5)Storage Temperature Range P, S Package: –65℃ to +150℃; (6)Operating Temperature Range: –40℃ to +85℃; (7)Junction Temperature Range P, S Package: –65℃ to +150℃; (8)Lead Temperature Range (Soldering, 60 sec): +300℃.
Features
OP413ESZ features: (1)Single- or Dual-Supply Operation; (2)Low Noise: 4.7nV/√ ̄Hz @ 1 kHz; (3)Wide Bandwidth: 3.4 MHz; (4)Low Offset Voltage: 100 mV; (5)Very Low Drift: 0.2μV/℃; (6) Unity Gain Stable; (7) No Phase Reversal.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OP413ESZ |

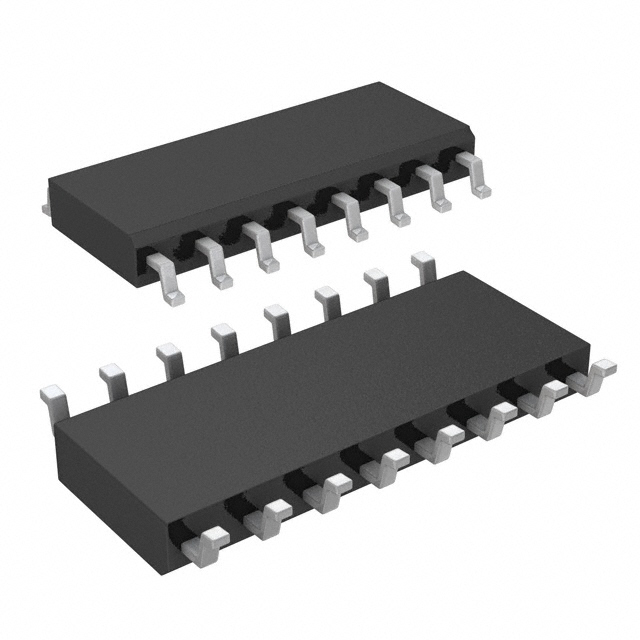

IC OPAMP GP 3.4MHZ QUAD 16SOIC |
Data Sheet |
|
|
||||||||||||||||||
OP413ESZ-REEL |
IC OPAMP GP 3.4MHZ QUAD 16SOIC |
Data Sheet |
|
|
