OP413ESZ-REEL

OP413ESZ-REEL, single supply operational amplifier, DIP, ±18V, 3.4MHz, 100mV

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.10~5.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.10~5.70

PartNumber:: OP413ESZ-REEL

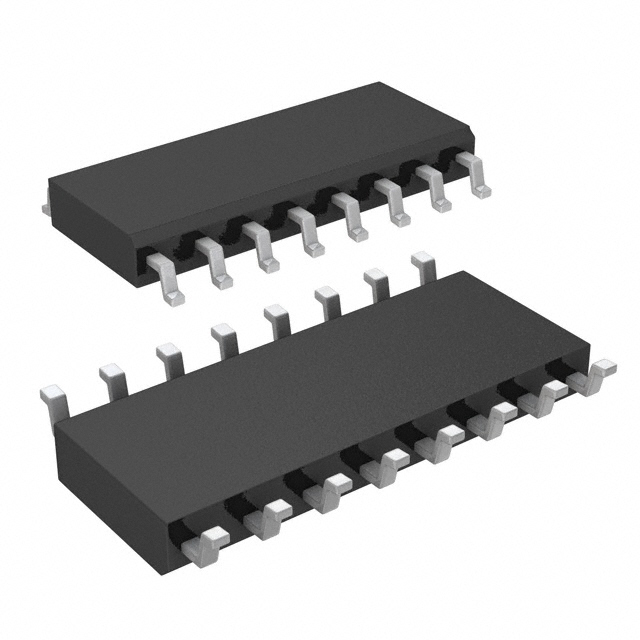

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:OP413ESZ-REEL
US $3.10 - 5.70
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The OP413ESZ-REEL is a single supply operational amplifier. It features both low noise and drift. It has been designed for systems with internal calibration. Often these processor-based systems are capable of calibrating corrections for offset and gain, but they cannot correct for temperature drifts and noise. Optimized for these parameters, the OP413ESZ-REEL can be used to take advantage of superior analog performance combined with digital correction. Many systems using internal calibration operate from unipolar supplies, usually either +5 volts or +12 volts. The OP413ESZ-REEL is designed to operate from single supplies from +4 volts to +36 volts, and to maintain its low noise and precision performance. The applications of the OP413ESZ-REEL include Digital Scales, Multimedia, Strain Gages, Battery Powered Instrumentation, and Temperature Transducer Amplifier.

Parametrics

OP413ESZ-REEL absolute maximum ratings: (1)Supply Voltage:±18 V; (2)Input Voltage:±18 V; (3)Differential Input Voltage:±10 V; (4)Output Short-Circuit Duration to GND: Indefinite; (5)Storage Temperature Range P, S Package: –65℃ to +150℃; (6)Operating Temperature Range: –40℃ to +85℃; (7)Junction Temperature Range P, S Package: –65℃ to +150℃; (8)Lead Temperature Range (Soldering, 60 sec): +300℃.

Features

OP413ESZ-REEL features: (1)Single- or Dual-Supply Operation; (2)Low Noise: 4.7nV/√￣Hz @ 1 kHz; (3)Wide Bandwidth: 3.4 MHz; (4)Low Offset Voltage: 100 mV; (5)Very Low Drift: 0.2μV/℃; (6) Unity Gain Stable; (7) No Phase Reversal.
