MSP430F2121TRGET

Product Summary

The MSP430F2121TRGET is an ultralow power microcontroller consisting of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430F2121TRGET features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1μs. The MSP430F2121TRGET is an ultralow-power mixed signal microcontroller with a built-in 16-bit timer, versatile analog comparator and sixteen I/O pins.

Parametrics

MSP430F2121TRGET absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to 4.1 V; (2)Voltage applied to any pin: -0.3 V to VCC+0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Storage temperature, Tstg: -55 to 150℃; (5)Storage temperature, Tstg: -40 to 85℃.

Features

MSP430F2121TRGET features: (1)Low Supply Voltage Range 1.8 V to 3.6 V; (2)Ultralow-Power Consumption: Active Mode: 200 μA at 1 MHz, 2.2 V; Standby Mode: 0.7 μA; Off Mode (RAM Retention): 0.1 μA; (3)Ultrafast Wake-Up From Standby Mode in less than 1 μs; (4)16-Bit RISC Architecture, 65 ns Instruction Cycle Time; (5)Basic Clock Module Configurations: Internal Frequencies up to 16MHz; 32-kHz Crystal; High-Frequency Crystal up to 16MHz; Resonator; External Clock Source; (6)16-Bit Timer_A With Three Capture/Compare Registers; (7)On-Chip Comparator for Analog Signal Compare Function or Slope A/D Conversion; (8)Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse; (9)Bootstrap Loader in Flash Devices; (10)Available in a 20-Pin Plastic Small-Outline Wide Body (SOWB) Package, 20-Pin Plastic Small-Outline Thin (TSSOP) Package, 20-Pin TVSOP and 24-Pin QFN; (11)For Complete Module Descriptions, Refer to the MSP430x2xx Family User’s Guide.

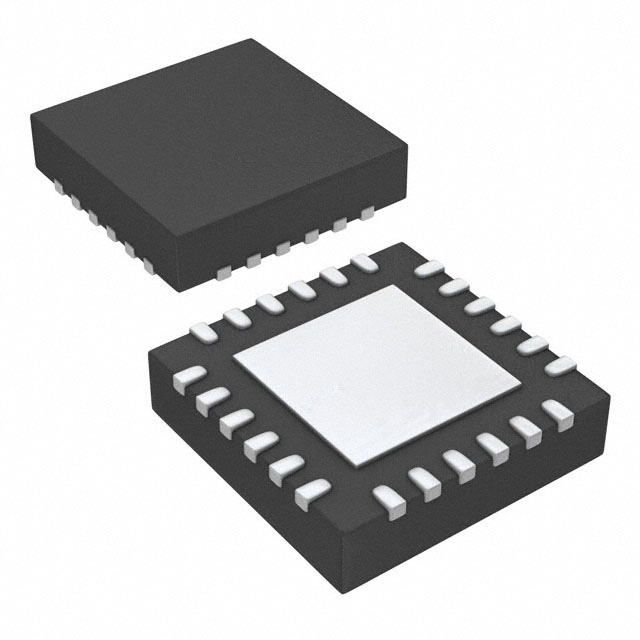

Diagrams
