Product Summary
The MSA-1105-TR1G is a high performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) housed in a low cost, surface mount plastic package. The MSA-1105-TR1G is designed for high dynamic range in either 50 or 75 Ω systems by combining low noise fgure with high IP3. Typical applications of the MSA-1105-TR1G include narrow and broadband linear amplifers in commercial and industrial systems.
Parametrics
MSA-1105-TR1G absolute maximum ratings: (1)Device Current:80 mA; (2)Power Dissipation:550 mW; (3)RF Input Power:+13 dBm; (4)Junction Temperature:150℃; (5)Storage Temperature:–65 to 150℃.
Features
MSA-1105-TR1G features: (1)High Dynamic Range Cascadable 50Ω or 75Ω Gain Block; (2)3 dB Bandwidth: 50 MHz to 1.3 GHz; (3)17.5 dBm Typical P1 dB at 0.5 GHz; (4)3.6 dB Typical Noise Figure at 0.5 GHz; (5)Surface Mount Plastic Package; (6)Tape-and-Reel Packaging Option Available; (7)Lead-free Option Available.

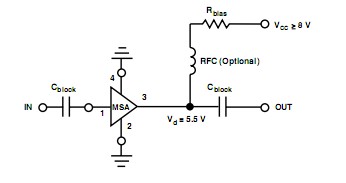

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MSA-1105-TR1G |
![]() Avago Technologies |
![]() RF Amplifier 6.6 SV 17.5 dB |
![]() Data Sheet |
![]()
|
|
||||||||||||||
