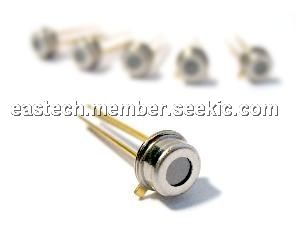

MLX90615ESG-DAA

Infra Red thermometer, TO-46, 2.6 V ~ 3.6 V, MLX90615ESG-DAA, Melexis

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.22~19.33 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.22~19.33

PartNumber:: MLX90615ESG-DAA

Brand:: Melexis Microelectronic Systems - Melexis | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-31

From Other Seller

Part Number:MLX90615ESG-DAA
US $10.22 - 19.33
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

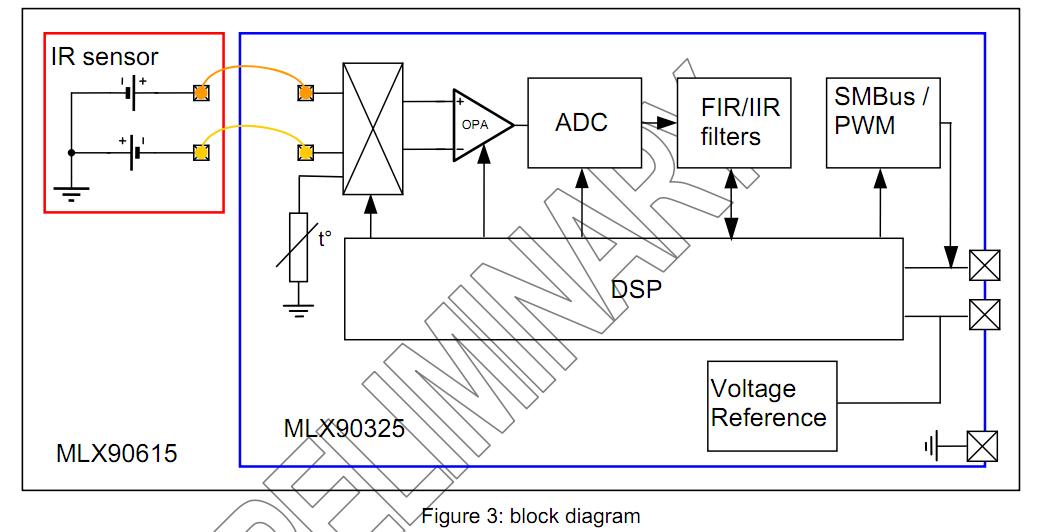

The MLX90615ESG-DAA is an Infra Red thermometer for non contact temperature measurements. Both the IR sensitive thermopile detector chip and the signal conditioning chip are integrated in the same TO-46 can package. The applications of the MLX90615ESG-DAA include High precision non-contact temperature measurements; Hand-held thermometers, Ear thermometers, Home appliances with temperature control; Healthcare; Livestock monitoring; Multiple zone temperature control –up to 100 sensors can be read via common 2 wires.

Parametrics

MLX90615ESG-DAA absolute maximum ratings: (1)Supply Voltage, VDD (over voltage): 5V; (2)Supply Voltage, VDD (operating): 3.6 V; (3)Reverse Voltage: 0.5 V; (4)Operating Temperature Range, TA: -40 to +85℃; (5)Storage Temperature Range, TS: -40 to +125℃; (6)ESD Sensitivity (AEC Q100 002): 2kV; (7)DC sink current, SDA pin: 25 mA; (8)DC clamp current, SDA pin: 10 mA; (9)DC clamp current, SCL pin: 10 mA.

Features

MLX90615ESG-DAA features: (1)Small size, low cost; (2)Easy to integrate; (3)Factory calibrated in wide temperature range: -40 to 85℃ for sensor temperature and -40 to 115℃ for object temperature. ; (4)High accuracy of 0.5℃ over wide temperature range (0 to +50℃ for both Ta and To) ; (5)High (medical) accuracy calibration; (6)Measurement resolution of 0.02℃; (7)SMBus compatible digital interface; (8)Power saving mode; (9)Customizable PWM output for continuous reading; (10)Embedded emissivity compensation; (11)3V supply voltage.
