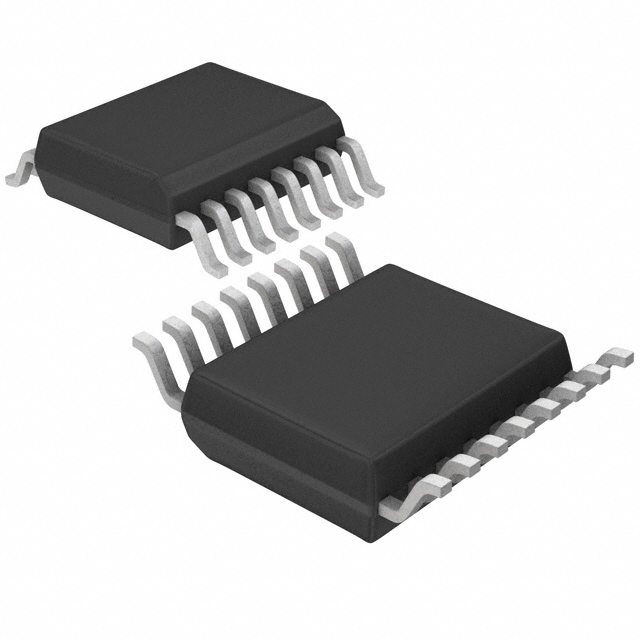

MAX7490EEE+T

standard definition video reconstruction filter and buffer, 14-TSSOP, Input 2 to 1 Multiplexer, +5V, 150Ω

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.59~6.19 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.59~6.19

PartNumber:: MAX7490EEE+T

Brand:: Dallas Semiconductor - Maxim | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:MAX7490EEE+T
US $2.59 - 6.19
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX7490EEE+T is a standard definition video reconstruction filter and buffer, which is low-cost, high-performance replacements for standard discrete filter and buffer solutions.The MAX7490EEE+T is ideal for anti-aliasing and DAC smoothing video applications, when analog video is reconstructed from a digital data stream. These devices require a single +5V supply and the filters have a cutoff frequency optimized for NTSC, PAL, and standard definition digital TV (SDTV) video signals. The MAX7490EEE+T features Maxim’s single-pin bus interface to digitally control channel selection (IN_A or IN_B), adjust high-frequency boost, bypass the filter, configure luma vs. chroma operation, and control the output disable.The MAX7490EEE+T is widely used in set-top boxes, DVD players, hard-disk recorders and camcorders.

Parametrics

MAX7490EEE+T absolute maximum ratings: (1)VCC to GND: +6V; (2)All Other Pins to GND: -0.3V to (VCC + 0.3V); (3)Maximum Current Into Any Pin: ±50mA; (4)Continuous Power Dissipation (TA = +70℃) 14-Pin TSSOP (derate 9.1mW/℃ above +70℃): 727mW; (5)Operating Temperature Range: -40℃ to +85℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Junction Temperature: +150℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

MAX7490EEE+T features: (1)Ideal for CVBS, Y/C (S-Video), and RGB (Y Pb Pr) Outputs for NTSC, PAL, and SDTV; (2)6th-Order Lowpass Filter; (3)Drives Two 150Ω Video Loads; (4)Four Levels of Passband High-Frequency Boost Control; (5)Input 2 to 1 Multiplexer; (6)Output Disable; (7)Filter Bypassing; (8)+5V Single-Supply Voltage; (9)14-Pin TSSO Package.
