Product Summary
The LTC4251CS6#TRPBF positive voltage Hot SwapTM controller allows a board to be safely inserted and removed from a live AMC or MicroTCA backplane. It controls the main 12V supply with an external N-channel MOSFET and the 3.3V auxiliary supply with an integrated switch. The 12V output ramp rate of LTC4251CS6#TRPBF is adjustable and includes inrush current limiting. The 12V output is also protected against short circuit faults with a fast acting current limit and a 5% accurate timed circuit breaker. The 3.3V output includes both soft start and overcurrent protection. The applications of the LTC4251CS6#TRPBF include Advanced Mezzanine Card, MicroTCA Systems, Workstations and Server I/O, Telecom Networks.
Parametrics
LTC4251CS6#TRPBF absolute maximum ratings: (1)Supply Voltages: 12VIN: –0.3V to 20V, AUXIN: –0.3V to 10V, VCC: –0.3V to 7V; (2)Input Voltages: 12ON, AUXON, EN: –0.3V to 7V, TIMER: –0.3V to VCC + 0.3V, 12VSENSE: –0.3V to 20V; (3)Operating Temperature Range: 0℃ to 70℃; (4)Storage Temperature Range: GN Package: –65℃ to 150℃, DHD Package: –65℃ to 125℃; (5)Lead Temperature (Soldering, 10sec): GN Package: 300℃.
Features
LTC4251CS6#TRPBF features: (1)Allows Safe Insertion into Live AMC or MicroTCA Backplane; (2)Controls 12V Main and 3.3V Auxiliary Supplies; (3)Limits Peak Fault Current in ≤1μs; (4)Adjustable Current Limit with Circuit Breaker; (5)Integrated 0.3Ω AUX Switch; (6)High Side Current Sense; (7)Gate Drive for External N-Channel MOSFET; (8)Adjustable Response Time for Overcurrent Protection; (9)Adjustable Supply Voltage Power-Up Rate; (10)Thermal Shutdown Protection; (11)LTC4223-1: Latch Off After Fault; (12)LTC4223-2: Automatic Retry After Fault; (13)16-Lead SSOP and 5mm × 4mm DFN Packages.

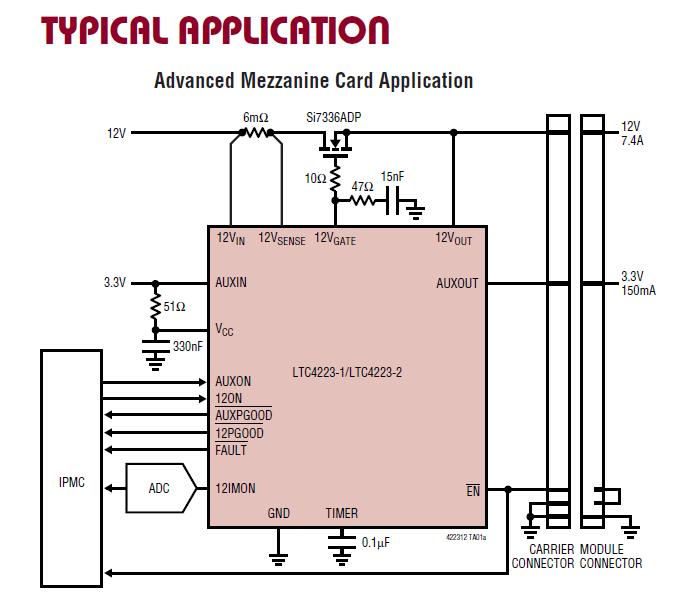

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

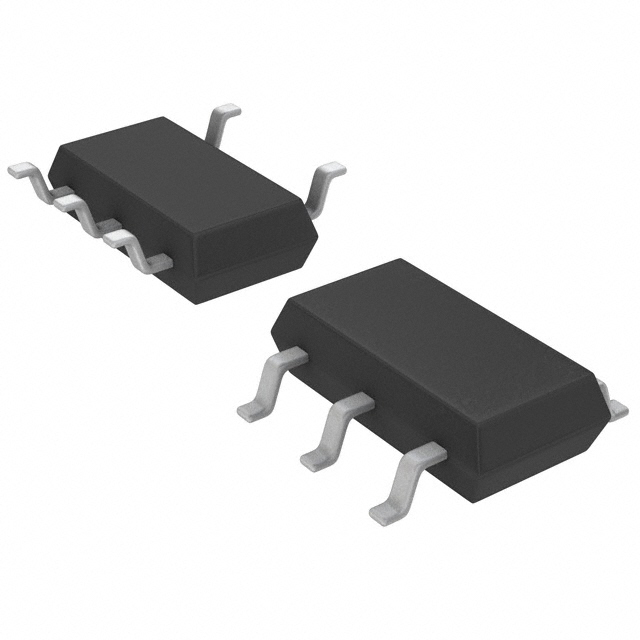

LTC4251CS6#TRPBF |
IC CTRLR HOTSWAP NEGVOLT SOT23-6 |
Data Sheet |
|
|
||||||||||||
