LTC4210-1CS6#TRPBF

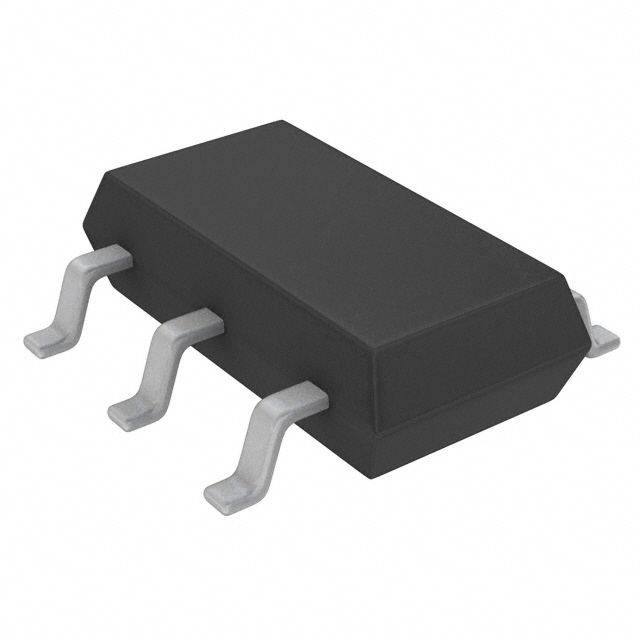

LTC4210-1CS6#TRPBF, Hot Swap Controller, 6-Lead SOT-23, 2.7 to 16.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.15~2.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.15~2.80

PartNumber:: LTC4210-1CS6#TRPBF

Brand:: Linear Technology - Linear | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:LTC4210-1CS6#TRPBF
US $1.15 - 2.80
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LTC4210-1CS6#TRPBF is a 6-pin SOT-23 Hot Swap controller that allows a board to be safely inserted and removed from a live backplane. An internal high side switch driver controls the GATE of an external N-channel MOSFET for a supply voltage ranging from 2.7V to 16.5V. The LTC4210-1CS6#TRPBF provides the initial timing cycle and allows the GATE to be ramped up at an adjustable rate. The applications of the LTC4210-1CS6#TRPBF are Hot Board Insertion, Electronic Circuit Breaker, Industrial High Side Switch/Circuit Breaker.

Parametrics

LTC4210-1CS6#TRPBF absolute maximum ratings: (1)Supply Voltage (VCC):17V; (2)Input Voltage (SENSE, TIMER):– 0.3V to (VCC + 0.3V); (3)Input Voltage (ON):–0.3V to 17V; (4)Output Voltage (GATE):Internally Limited; (5)Operating Temperature Range:–40 to 85℃; (6)Storage Temperature Range:–65 to 150℃; (7)Lead Temperature (Soldering, 10 sec):300℃.

Features

LTC4210-1CS6#TRPBF features: (1)Allows Safe Board Insertion and Removal from a Live Backplane ; (2)Adjustable Analog Current Limit with Circuit Breaker ; (3)Fast Response Limits Peak Fault Current ; (4)Automatic Retry or Latch Off On Current Fault ; (5)Adjustable Supply Voltage Power-Up Rate ; (6)High Side Drive for External MOSFET Switch ; (7)Controls Supply Voltages from 2.7V to 16.5V ; (8)Undervoltage Lockout ; (9)Adjustable Overvoltage Protection ; (10)Low Profile (1mm) SOT-23 (ThinSOT) Package.
