Product Summary

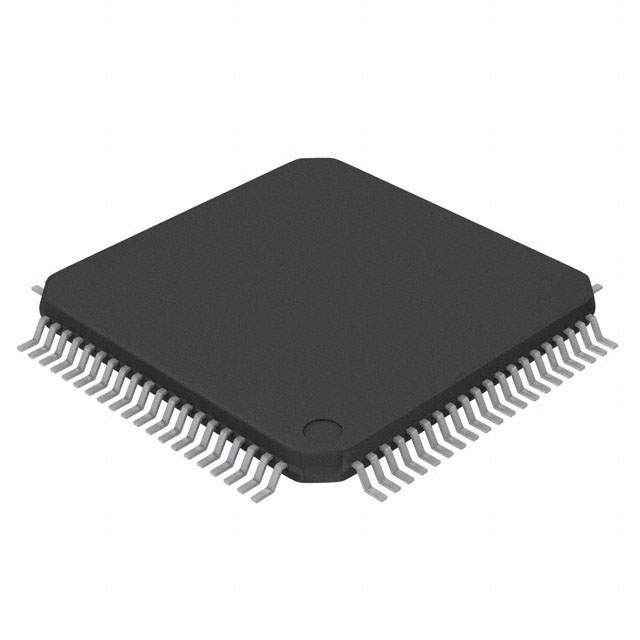

The LPC1758FBD80,551 is an ARM Cortex-M3 based microcontroller for embedded applications featuring a high level of integration and low power consumption. The ARM Cortex-M3 is a next generation core that offers system enhancements such as enhanced debug features and a higher level of support block integration. The LPC1758FBD80,551 operates at CPU frequencies of up to 100 MHz. The ARM Cortex-M3 CPU incorporates a 3-stage pipeline and uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals. The applications of the LPC1758FBD80,551 include: eMetering, Alarm systems, Lighting, White goods, Industrial networking, Motor control.

Parametrics

LPC1758FBD80,551 absolute maximum ratings: (1)VIA analog input voltage: -0.5 to +5.1 V; (2)VI input voltage: -0.5 to +5.5 V; (3)IDD supply current: 100 mA; (4)ISS ground current: 100 mA; (5)Ilatch I/O latch-up current: 100 mA; (6)Tstg storage temperature: -65 to +150 ℃; (7)Ptot(pack) total power dissipation (per package): 1.5 W; (8)VESD electrostatic discharge voltage: -4000 to +4000 V.

Features

LPC1758FBD80,551 features: (1)ARM Cortex-M3 processor, running at frequencies of up to 100 MHz or of up to 120 MHz (LPC1769). A Memory Protection Unit(MPU) supporting eight regions is included; (2)ARM Cortex-M3 built-in Nested Vectored Interrupt Controller(NVIC); (3)Up to 512 kB on-chip flash programming memory. Enhanced flash memory accelerator enables high-speed 120 MHz operation with zero wait states; (4)In-System Programming (ISP) and In-Application Programming (IAP) via on-chip bootloader software; (5)Split APB bus allows high throughput with few stalls between the CPU and DMA.

Diagrams

LPC1758FBD80,551 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

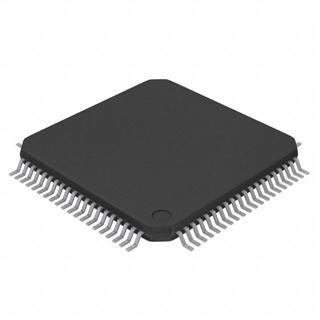

LPC1758FBD80,551
LPC1758FBD80,551

NXP Semiconductors

ARM Microcontrollers (MCU) ARM Cortex M3 Micro Controller

Data Sheet

0-1: $5.74
1-25: $5.31
25-100: $4.34
100-250: $4.14
