Product Summary
The LP38692MP-5.0/NOPB is a low dropout CMOS linear regulator. It can provide 2.5% precision reference voltage, extremely low dropout voltage (450mV @ 1A load current, VOUT = 5V) and excellent AC performance utilizing ultra low ESR ceramic output capacitors. The applications of the LP38692MP-5.0/NOPB include Hard Disk Drives, Notebook Computers, Battery Powered Devices and Portable Instrumentation.
Parametrics
LP38692MP-5.0/NOPB absolute maximum ratings: (1)Storage Temperature Range: -65 to +150℃; (2)Lead Temp. (Soldering, 5 seconds): 260℃; (3)ESD Rating: 2 kV; (4)Power Dissipation: Internally Limited; (5)V(max) All pins (with respect to GND): -0.3V to 12V; (6)IOUT: Internally Limited; (7)Junction Temperature: -40 to +150℃.
Features
LP38692MP-5.0/NOPB features: (1)Output voltage range of 1.25V - 9V; (2)2.5% adjust pin voltage accuracy (25℃); (3)Low dropout voltage: 450mV @ 1A (typ, 5V out); (4)Wide input voltage range (2.7V to 10V); (5)Precision (trimmed) bandgap reference; (6)Guaranteed specs for -40 to +125℃; (7)1μA off-state quiescent current; (8)Thermal overload protection; (9)Foldback current limiting; (10)SOT-223 and 6-Lead LLP packages; (11)Enable pin (LP38692-ADJ).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

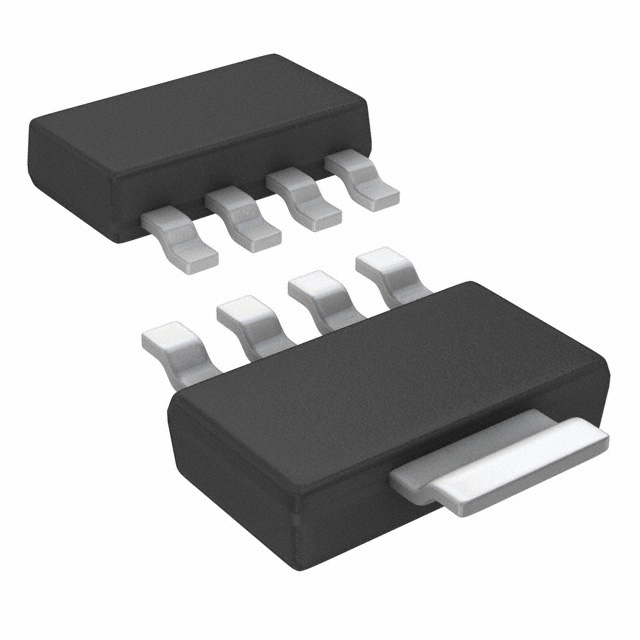

 LP38692MP-5.0/NOPB |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators 1A LDO W/Enable Pin |
Data Sheet |
|
|
||||||||||||
