Product Summary
The LMC662AIMX is a CMOS Dual operational amplifier. It is ideal for operation from a single supply. The LMC662AIMX operates from +5V to +15V and features rail-to-rail output swing in addition to an input common-mode range that includes ground. The applications of the LMC662AIMX are High-impedance buffer or preamplifier, Precision current-to-voltage converter, Long-term integrator, Sample-and-hold circuit, Peak detector, Medical instrumentation, Industrial controls, Automotive sensors.
Parametrics
LMC662AIMX absolute maximum ratings: (1)Differential Input Voltage:±16V; (2)Supply Voltage (V+ - V-):16V; (3)Lead Temperature(Soldering, 10 sec.):260℃; (4)Storage Temp. Range:-65℃ to +150℃; (5)Voltage at Input/Output Pins:(V+) +0.3V, (V-) -0.3V; (6)Current at Output Pin:±18mA; (7)Current at Input Pin:±5mA; (8)Current at Power Supply Pin:35mA; (9)Junction Temperature 150℃; (10)ESD Tolerance:1000V.
Features
LMC662AIMX features: (1)Rail-to-rail output swing; (2)Specified for 2 kΩ and 600Ω loads; (3)High voltage gain: 126 dB; (4)Low input offset voltage: 3 mV; (5)Low offset voltage drift: 1.3 μV/℃; (6)Ultra low input bias current: 2 fA; (7)Input common-mode range includes V-; (8)Operating range from +5V to +15V supply; (9)ISS = 400 μA/amplifier; independent of V+; (10)Low distortion: 0.01% at 10 kHz; (11)Slew rate: 1.1 V/μs; (12)Available in extended temperature range (-40℃ to +125℃); ideal for automotive applications; (13)Available to a Standard Military Drawing specification.

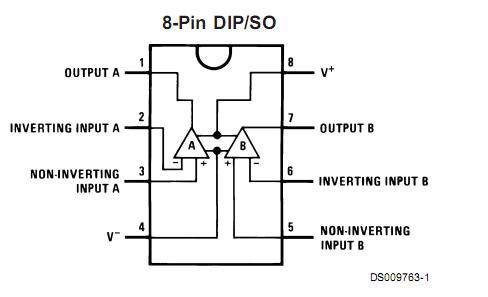

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMC662AIMX |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
|
LMC662AIMX/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps CMOS DUAL OP AMP |
Data Sheet |
|
|
||||||||||||
