Product Summary
The LMC6494BEM is a CMOS dual rail-to-rail input and output operational amplifier. It provides a common-mode range that extends to both supply rails. This rail-to-rail performance combined with excellent accuracy, due to a high CMRR, makes the LMC6494BEM unique among rail-to-rail input amplifiers. It is ideal for systems, such as data acquisition, that require a large input signal range. The LMC6494BEM is also an excellent upgrade for circuits using limited common-mode range amplifiers. The applications of the LMC6494BEM include Data Acquisition Systems, Transducer Amplifiers, Hand-held Analytic Instruments, Medical Instrumentation, Active Filter, Peak Detector, Sample and Hold, pH Meter, Current Source and Improved Replacement for TLC272, TLC277.
Parametrics
LMC6494BEM absolute maximum ratings: (1)ESD Tolerance: 1.5kV; (2)Differential Input Voltage: ±Supply Voltage; (3)Voltage at Input/Output Pin: (V+) +0.3V, (V-) -0.3V; (4)Supply Voltage (V+ - V-): 16V; (5)Current at Input Pin: ±5mA; (6)Current at Output Pin: ±30mA; (7)Current at Power Supply Pin: 40mA; (8)Lead Temperature (Soldering, 10 sec.): 260℃; (9)Storage Temperature Range: -65℃ to +150℃.
Features
LMC6494BEM features: (1)Rail-to-Rail Input Common-Mode Voltage Range (Guaranteed Over Temperature); (2)Rail-to-Rail Output Swing (within 20mV of supply rail, 100kΩ load); (3)Guaranteed 3V, 5V and 15V Performance; (4)Excellent CMRR and PSRR: 82dB; (5)Ultra Low Input Current: 20fA; (6)High Voltage Gain (RL = 500kΩ): 130dB; (7)Specified for 2kΩ and 600Ω loads; (8)Available in MSOP Package.

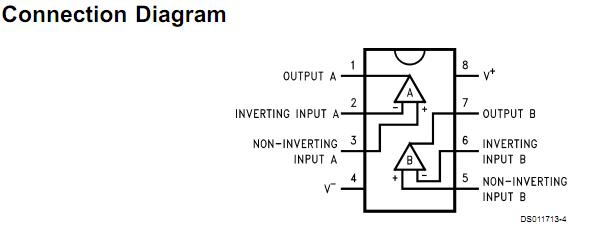

Diagrams
