Product Summary

The LM8364BALMF20 is a micropower undervoltage sensing circuit that is ideal for use in battery powered microprocessor based systems, where extended battery life is a key requirement. The applications of the LM8364BALMF20 are (1)Low Battery Detection; (2)Microprocessor reset Controller; (3)Power Fail Indicator; (4)Battery Backup Detection.

Parametrics

LM8364BALMF20 absolute maximum ratings: (1)Supply Voltage: -0.3V to 6.5V; (2)RESET Output Voltage: -0.3V to 6.5V; (3)RESET Output Current: 70mA; (4)Storage Temperature Range: -65 to 150℃; (5)Mounting Temp. Lead temp (Soldering, 10 sec): 260℃; (6)Junction Temperature: 125℃.

Features

LM8364BALMF20 features: (1)Extremely Low Quiescent Current: 0.65μA, at VIN =2.87V; (2)High Accuracy Threshold Voltage (±2.5%); (3)Open Drain Output; (4)Input Voltage Range: 1V to 6V; (5)Surface Mount Package (5-Pin SOT23); (6)Pin for pin compatible with MC33464.

Diagrams

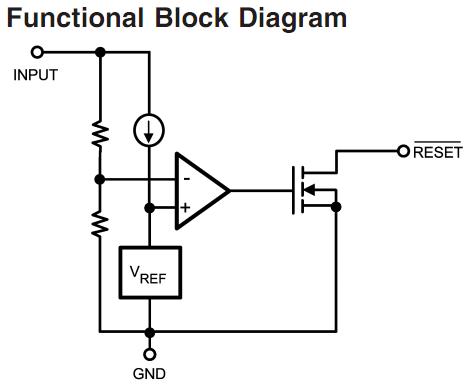

LM8364BALMF20 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM8364BALMF20
LM8364BALMF20
National Semiconductor (TI)
Supervisory Circuits
Data Sheet
0-1000: $0.18
1000-2000: $0.18
2000-3000: $0.17
3000-5000: $0.15
LM8364BALMF20/NOPB
LM8364BALMF20/NOPB
National Semiconductor (TI)
Supervisory Circuits
Data Sheet
0-1: $0.50
1-25: $0.39
25-100: $0.34
100-250: $0.30
