Product Summary

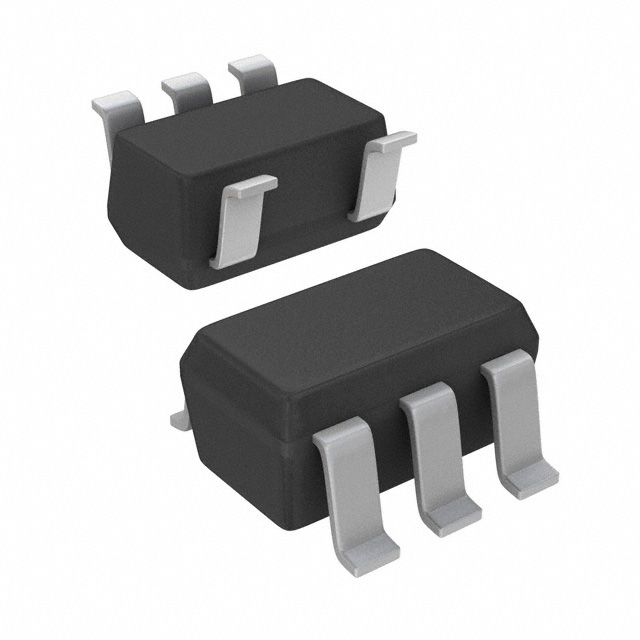

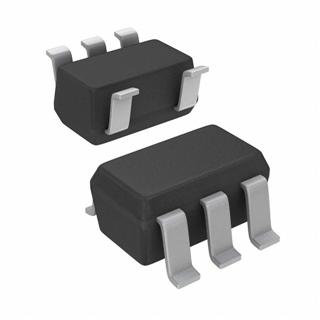

The LM4040C41IDBZRG4 shunt voltage reference is a versatile, easy-to-use reference that caters to a vast array of applications. The 2-pin fixed-output device requires no external capacitors for operation and is stable with all capacitive loads. Additionally, the reference offers low dynamic impedance, low noise, and low temperature coefficient to ensure a stable output voltage over a wide range of operating currents and temperatures. The LM4040C41IDBZRG4 uses fuse and Zener-zap reverse breakdown voltage trim during wafer sort to offer four output voltage tolerances, ranging from 0.1% (max) for the A grade to 1% (max) for the D grade. Packaged in space-saving SC-70 and SOT-23-3 packages and requiring a minimum current of 45mA (typ), the LM4040C41IDBZRG4 also is ideal for portable applications.

Parametrics

LM4040C41IDBZRG4 absolute maximum ratings over free-air temperature range: (1)IZ, Continuous cathode current: –10 to 25mA; (2)θJA, Package thermal impedance: DBZ package: 206℃/W max; DCK package: 252℃/W max; LP package: 156℃/W max; (3)TJ, Operating virtual junction temperature: 150 °C max; (4)Tstg, Storage temperature range: –65 to 150℃.

Features

LM4040C41IDBZRG4 features: (1)Fixed Output Voltages of 2.048 V, 2.5 V, 3 V, 4.096 V, 5 V, 8.192 V, and 10 V; (2)Tight Output Tolerances and Low Temperature Coefficient: Max 0.1%, 100ppm/℃ – A Grade; Max 0.2%, 100ppm/℃ – B Grade; Max 0.5%, 100ppm/℃ – C Grade; Max 1.0%, 150ppm/℃ – D Grade.; (3)Low Output Noise: 35mVRMS Typ; (4)Wide Operating Current Range: 45mA Typ to 15mA; (5)Stable With All Capacitive Loads; No Output Capacitor Required; (6)Available in Extended Temperature Range: –40 to 125℃.
