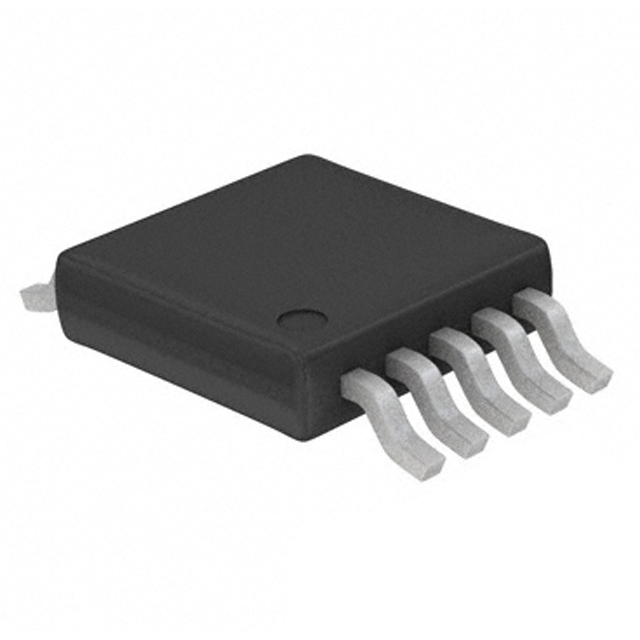

LM3445MMX/NOPB

constant current controller, 10-MSOP, High Brightness LED, 30kHz ~ 1MHz, RoHS Compliant

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.17~0.55 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.17~0.55

PartNumber:: LM3445MMX/NOPB

Brand:: National Semiconductor - NS | Pack: MSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:LM3445MMX/NOPB
US $0.17 - 0.55
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
DAD1000

US $2.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

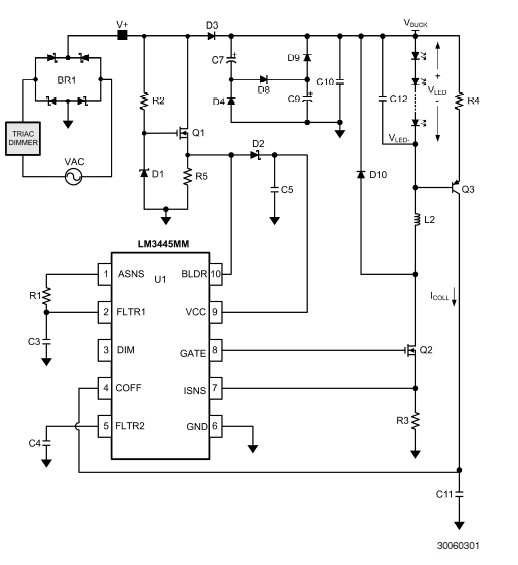

The LM3445MMX/NOPB is an adaptive constant off-time AC/DC buck (step-down) constant current controller designed to be compatible with triac dimmers. The LM3445MMX/NOPB provides a constant current for illuminating high power LEDs and includes a triac dim decoder. The dim decoder allows wide range LED dimming using standard triac dimmers. The high frequency capable architecture allows the use of small external passive components. The LM3445MMX/NOPB includes a bleeder circuit to ensure proper triac operation by allowing current flow while the line voltage is low to enable proper firing of the triac. The applications of the device include Retro Fit Triac Dimming, Solid State Lighting, Industrial and Commercial Lighting and Residential Lighting.

Parametrics

LM3445MMX/NOPB absolute maximum ratings: (1)BLDR to GND: -0.3V to +17V; (2)VCC, GATE, FLTR1 to GND: -0.3V to +14V; (3)ISNS to GND: -0.3V to +2.5V; (4)ASNS, DIM, FLTR2, COFF to GND: -0.3V to +7.0V; (5)COFF Input Current: 100mA; (6)Continuous Power Dissipation: Internally Limited; (7)Junction Temperature (TJ-MAX): 150℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Maximum Lead Temp. Range (Soldering): 260℃.

Features

LM3445MMX/NOPB features: (1)Triac dim decoder circuit for LED dimming; (2)Application voltage range 80VAC – 277VAC; (3)Capable of controlling LED currents greater than 1A; (4)Adjustable switching frequency; (5)Low quiescent current; (6)Adaptive programmable off-time allows for constant ripple current; (7)Thermal shutdown; (8)No 120Hz flicker; (9)Low profile 10 pin MSOP Package or 14 pin SOIC; (10)Patent pending drive architecture.
