HCPL-3100

IGBT gate drive optocoupler, 2.5A, 8-SMD, 15 to 30 Volts, HCPL-3100

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.45~3.11 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.45~3.11

PartNumber:: HCPL-3100

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:HCPL-3100
US $1.45 - 3.11
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

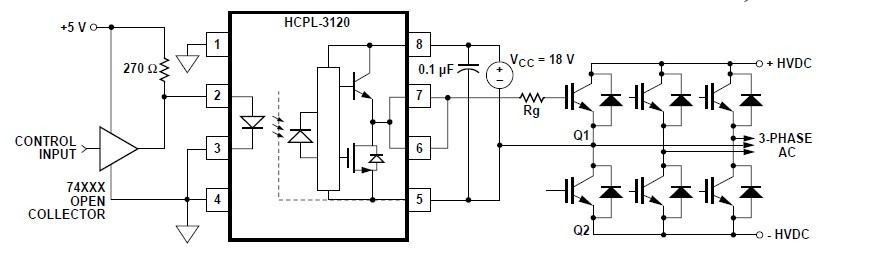

The HCPL-3100 is a 2.0 Amp output current IGBT gate drive optocoupler. It consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage. The HCPL-3100 is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The applications of the HCPL-3100: (1)Isolated IGBT/MOSFET Gate Drive; (2)AC and Brushless DC Motor Drives; (3)Industrial Inverters; (4)Switch Mode Power Supplies(SMPS).

Parametrics

HCPL-3100 absolute maximum ratings: (1)Storage Temperature TS: min=-55℃, max=125℃; (2)Operating Temperature TA: min=-40℃, max=100℃; (3)Average Input Current IF(AVG): max=25mA; (4)Peak Transient Input Current(<1μs pulse width, 300 pps) IF(TRAN): max=1.0A; (5)Reverse Input Voltage VR: max=5Volts; (6)High Peak Output Current IOH(PEAK): max=2.5A; (7)Low Peak Output Current IOL(PEAK): max=2.5A ; (8)Supply Voltage (VCC - VEE): min=0, max=35Volts; (9)Output Voltage VO: min=0, max=VCCVolts; (10)Output Power Dissipation PO: max=250mW ; (11)Total Power Dissipation PT: max=295mW ; (12)Lead Solder Temperature: 260℃ for 10 sec., 1.6 mm below seating plane.
