Product Summary

The ENC424J600-I/ML is a stand-alone, Fast Ethernet controller with an industry standard Serial Peripheral Interface (SPI) or a flexible parallel interface. The ENC424J600-I/ML is designed to serve as an Ethernet network interface for any microcontroller equipped with SPI or a standard parallel port.

Parametrics

ENC424J600-I/ML absolute maximum ratings: (1)Storage temperature: -65 to +150℃; (2)Ambient temperature under: -40 to +85℃ (Industrial); (3)Voltage on VDD, VDDOSC, VDDPLL, VDDRX and VDDTX, with respect to VSS: -0.3V to 4.0V; (4)Voltage on any digital pin, with respect to VSS: -0.3V to 6.0V; (5)Voltage on OSC1 and RBIAS analog pins, with respect to VSS: -0.3V to VDD + 0.3V; (6)Voltage on TPIN+/- and TPOUT+/-, with respect to VSS: -0.3V to 5.0V; (7)Voltage on VCAP, with respect to all VSS pins: -0.3V to 2.0V; (8)ESD protection on all pins: 2 kV; (9)Current sourced or sunk by any digital output pin: 25 mA; (10)Current out of all VSS pins: 420 mA; (11)Current into all VDD pins: 300 mA.

Features

ENC424J600-I/ML features: (1)Integrated MAC and 10/100Base-T PHY; (2)Hardware Security Acceleration Engines; (3)24-Kbyte Transmit/Receive Packet Buffer SRAM; (4)Supports one 10/100Base-T Port with Automatic Polarity Detection and Correction; (5)Supports Auto-Negotiation; (6)Support for Pause Control Frames, including Automatic Transmit and Receive Flow Control; (7)Supports Half and Full-Duplex Operation; (8)Programmable Automatic Retransmit on Collision; (9)Programmable Padding and CRC Generation; (10)Programmable Automatic Rejection of Erroneous and Runt Packets.

Diagrams

ENC424J600-I/ML block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

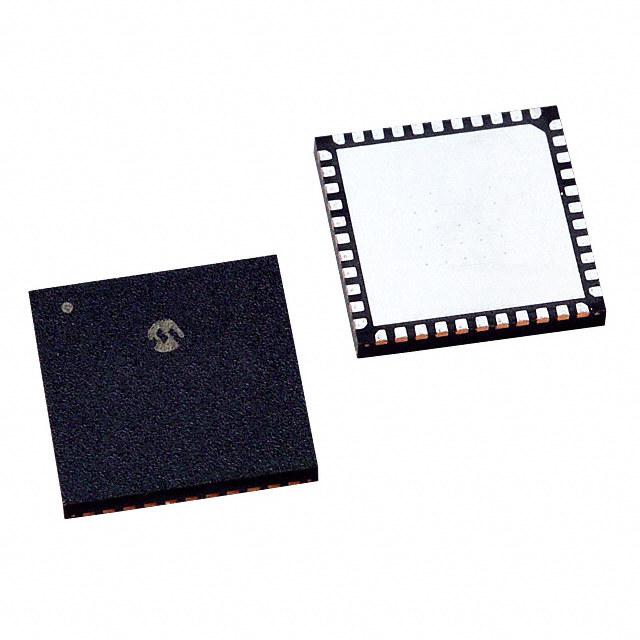

ENC424J600-I/ML
ENC424J600-I/ML

Microchip Technology

Ethernet ICs 10/100 Base-T Stand alone Ethernet Ctrlr

Data Sheet

0-1: $2.82
1-10: $2.26
10-25: $2.07
25-100: $1.87
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ENC424J600-I/ML
ENC424J600-I/ML

Microchip Technology

Ethernet ICs 10/100 Base-T Stand alone Ethernet Ctrlr

Data Sheet

0-1: $2.82
1-10: $2.26
10-25: $2.07
25-100: $1.87
ENC424J600T-I/PT
ENC424J600T-I/PT

Microchip Technology

Peripheral Drivers & Components (PCIs) 10/100 Base-T Stand alone Ethernet Ctrlr

Data Sheet

0-920: $1.81
920-1200: $1.81
ENC424J600T-I/ML
ENC424J600T-I/ML

Microchip Technology

Ethernet ICs 10/100 Base-T Stand alone Ethernet Ctrlr

Data Sheet

0-1230: $1.90
1230-1600: $1.90
ENC424J600-I/PT
ENC424J600-I/PT

Microchip Technology

Peripheral Drivers & Components (PCIs) 10/100 Base-T Stand alone Ethernet Ctrlr

Data Sheet

0-1: $2.69
1-10: $2.15
10-25: $1.97
25-100: $1.79
ENC40000
ENC40000


GEM/LIBRA/LEGEND ENCLOSURE

Data Sheet

0-1: $104.35
