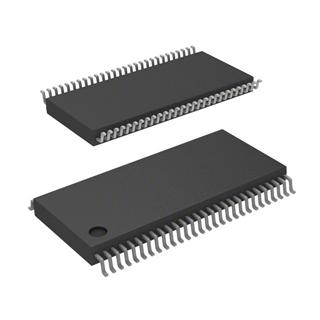

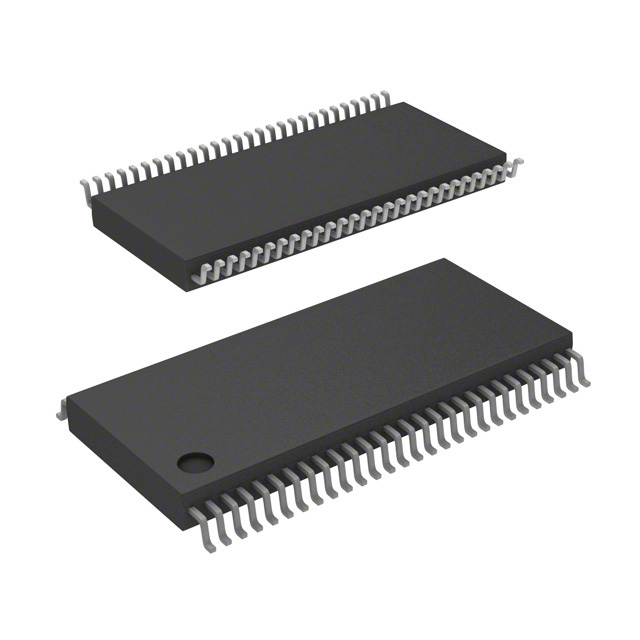

Product Summary
The DS90CR288AMTD is a +3.3V rising edge data storbe LVDS 28-bit channel link-85 MHz. The transmitter converts 28 bits of CMOS/TTL data into four LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. Every cycle of the transmit clock 28 bits of input data are sampled and transmitted. The DS90CR288AMTD receiver converts the four LVDS data streams back into 28 bits of CMOS/TTL data. At a transmit clock frequency of 85 MHZ, 28 bits of TTL data are transmitted at a rate of 595 Mbps per LVDS data channel. Using a 85 MHZ clock, the data throughput is 2.38 Gbit/s (297.5 Mbytes/sec).
Parametrics
DS90CR288AMTD absolute maxing ratings: (1)Supply Voltage (VCC): -0.3V to +4V; (2)CMOS/TTL Input Voltage: -0.5V to (VCC + 0.3V); (3)CMOS/TTL Output Voltage: -0.3V to (VCC + 0.3V); (4)LVDS Receiver Input Voltage: -0.3V to (VCC + 0.3V); (5)LVDS Driver Output Voltage: -0.3V to (VCC + 0.3V); (6)LVDS Output Short Circuit Duration: Continuous; (7)Junction Temperature: +150℃; (8)Storage Temperature: -65℃ to +150℃; (9)Lead Temperature(Soldering, 4 sec.): +260℃; (10)Maximum Package Power Dissipation @ +25℃ MTD56 (TSSOP) Package: 1.61W.
Features
DS90CR288AMTD features: (1)20 to 85 MHZ shift clock support; (2)50% duty cycle on receiver output clock; (3)Best–in–Class Set & Hold Times on TxINPUTs; (4)Low power consumption; (5)±1V common mode range (around +1.2V); (6)Narrow bus reduces cable size and cost; (7)Up to 2.38 Gbps throughput; (8)Up to 297.5 Megabytes/sec bandwidth; (9)345 mV (typ) swing LVDS devices for low EMI; (10)PLL requires no external components; (11)Rising edge data strobe; (12)Compatible with TIA/EIA-644 LVDS standard; (13)Low profile 56-lead TSSOP package.

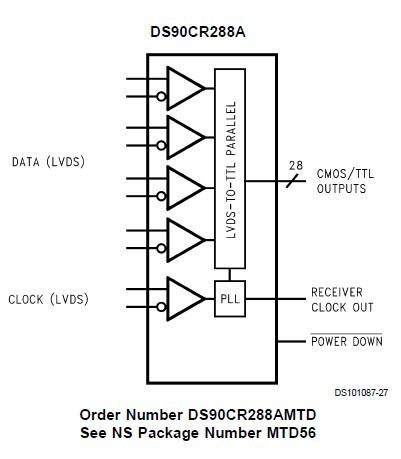

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS90CR288MTD |
|
IC RCVR 28BIT CHAN LINK 56TSSOP |
Data Sheet |
Negotiable |
|
||||
|
DS90CR288MTDX |
|
IC RCVR 28BIT CHAN LINK 56TSSOP |
Data Sheet |
Negotiable |
|
||||
