DRV603PWR

stereo line driver, QFN, – 0.3 V to 5.5 V, DRV603PWR

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.90~1.30

PartNumber:: DRV603PWR

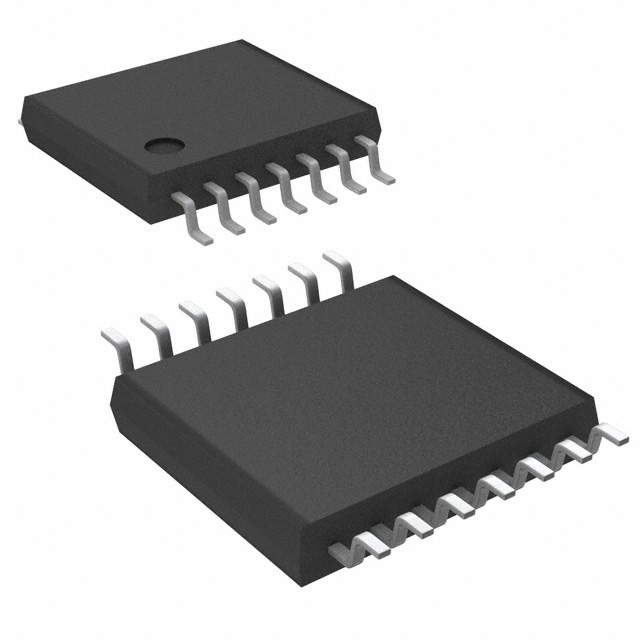

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:DRV603PWR
US $0.90 - 1.30
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

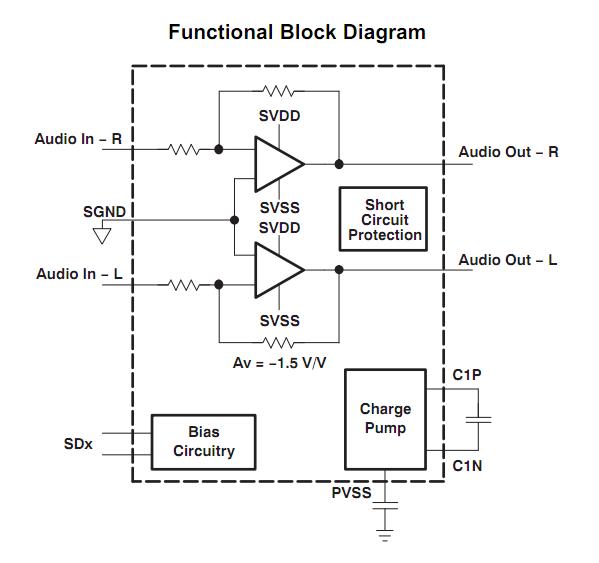

The DRV603PWR is a stereo line driver designed to allow the removal of the output dc-blocking capacitors for reduced component count and cost. The DRV603PWR is ideal for single supply electronics where size and cost are critical design parameters. The applications of the device are (1)Set-top boxes; (2)CD / DVD Players; (3)DVD-Receivers; (4)HTIB; (5)PDP / LCD TVs.

Parametrics

DRV603PWR absolute maximum ratings: (1)Supply voltage, AVDD, PVDD: – 0.3 V to 5.5 V; (2)VI Input voltage V SS: - 0.3 V to V DD + 0.3 V; (3)R(Load) Minimum load impedance: ≥ 100 Ω; (4)TA Operating free-air temperature range: – 40 to 85℃; (5)TJ Operating junction temperature range: – 40 to 150℃; (6)Tstg Storage temperature range: – 65 to 85℃.

Features

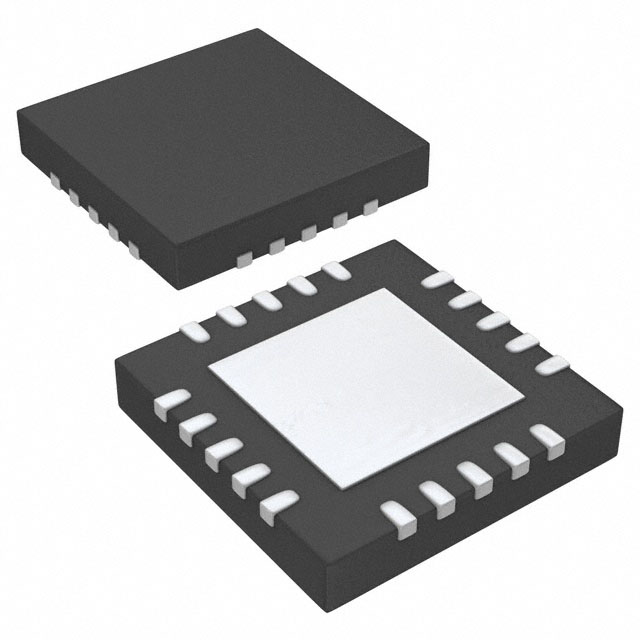

DRV603PWR features: (1)Space Saving Package 20-Pin, 4 mm × 4 mm Thin QFN, Thermally Optimized PowerPAD Package; (2)Ground-Referenced Outputs Eliminate DC-Blocking Capacitor; (3)Wide Power Supply Range: 1.8 V to 4.5 V; (4)2 Vrms/Ch Output Voltage into 600Ω at 3.3 V; (5)Independent Right and Left Channel Shutdown Control; (6)Short-Circuit and Thermal Protection; (7)Pop Reduction Circuitry.
