Product Summary

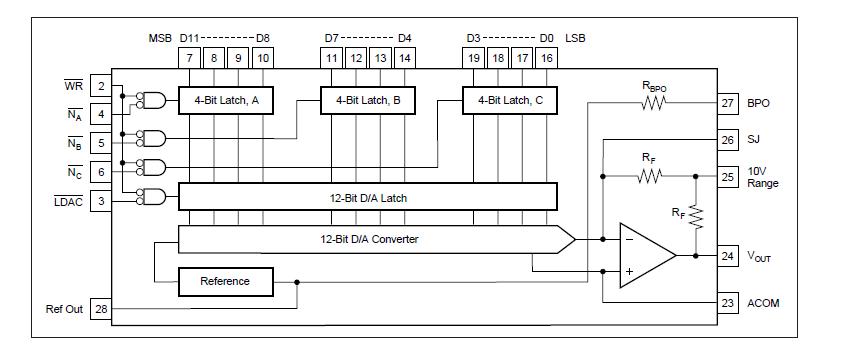

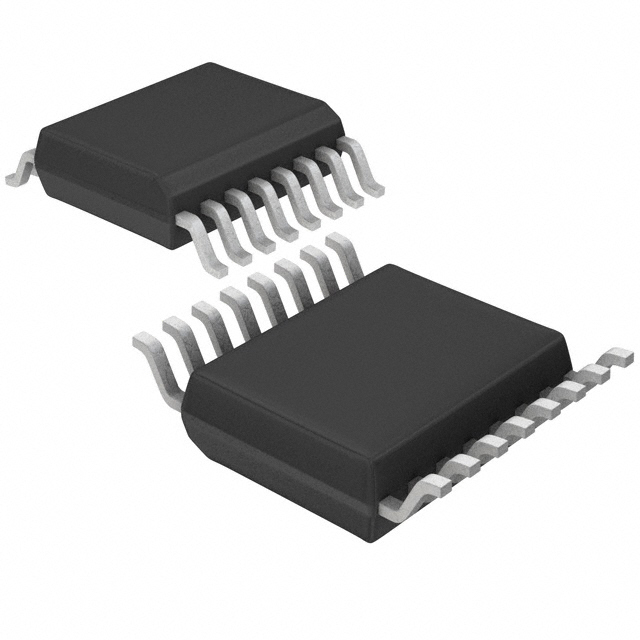

The DAC8165ICPW is a complete, single-chip integrated-circuit, microprocessor-compatible, 12-bit digital-toanalog converter. The DAC8165ICPW combines a precision voltage reference, microcomputer interface logic, and double-buffered latch, in a 12-bit D/A converter with a voltage output amplifier. Fast current switches and a laser-trimmed thin-film resistor network provide a highly accurate and fast D/A converter.
Parametrics
DAC8165ICPW absolute maximum ratings: (1)+VCC: 0 to +18V; (2)-VCC to ACOM: 0 to -18V; (3)VDD to DCOM: 0 to +7V; (4)VDD to ACOM: ±7V; (5)ACOM to DCOM: ±7V; (6)Digital inputs (Pins 2–14, 16–19) to DCOM: -0.4V to +18V; (7)External voltage applied to 10v range resistor: ±12V; (8)Ref out: indefinite short to ACOM; (9)External voltage applied to DAC output: -5V to +5V; (10)Power dissipation: 1000mW; (11)Lead temperature (soldering, 10s): +300℃; (12)Max junction temperature: +165℃; (13)Thermal resistance, θJ-A: plastic DIP and SOIC: 100℃/W; (14)Ceramic DIP: 65℃/W.
Features
DAC8165ICPW features: (1)Single integrated circuit chip; (2)Microcomputer interface: double-buffered latch; (3)Voltage output: ±10V, ±5V, +10V; (4)Monotonicity guaranteed over temperature; (5)±1/2LSB maximum nonlinearity over temperature; (6)Guaranteed specifications at ±12V and ±15V supplies; (7)TTL/5V CMOS-compatible logic inputs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DAC8165ICPW |
Texas Instruments |
DAC (D/A Converters) 14B 4Ch Ultra-Lo Glitch Vltg Output |
Data Sheet |
|
|
||||||||||||
|
