Product Summary
The DAC7541AKP is a low-power, voltage-output, octal channel, digital-to-analog converter (DAC). The DAC5578SPW provides good linearity,and minimize undesired code-to-code transient voltages (glitch). The applications of the DAC7541AKP are (1)Portable Instrumentation; (2)Closed-Loop Servo Control; (3)Process Control; (4)Data Acquisition Systems.
Parametrics
DAC7541AKP absolute maximum ratings: (1)AVDD to GND: –0.3 to +6 V; (2)Digital input voltage to GND: –0.3 to +AVDD + 0.3 V; (3)VOUT to GND: –0.3 to +AVDD + 0.3 V; (4)VREFIN to GND: –0.3 to +AVDD + 0.3 V; (5)Operating temperature range: –40 to +125℃; (6)Storage temperature range: –65 to +150℃; (7)Junction temperature range (TJ max): +150℃; (8)Power dissipation: (TJ max – TA)/qJA W.
Features
DAC7541AKP features: (1)Glitch Energy: 0.15nV-s; (2)Power-On Reset to Zero Scale or Midscale; (3)Ultra-Low Power Operation: 0.13mA/ch at 5V; (4)Wide Power-Supply Range: +2.7V to +5.5V; (5)2-Wire Serial Interface ( I2C compatible); (6)Temperature Range: –40 to +125℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

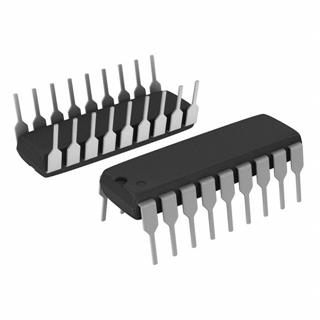

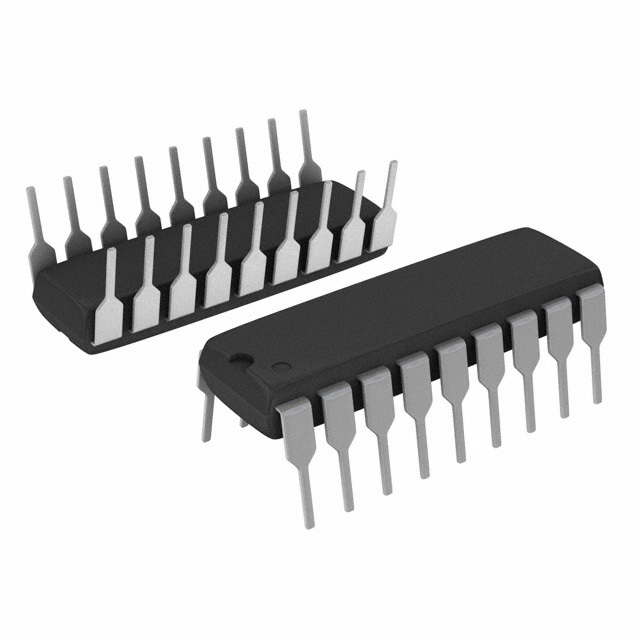

 DAC7541AKP |
Texas Instruments |
DAC (D/A Converters) 12-Bit CMOS 4-Quad Multiplying Cnvtr |
Data Sheet |
|
|
||||||||||
|
DAC7541AKPG4 |
Texas Instruments |
DAC (D/A Converters) 12-Bit CMOS 4-Quad Multiplying Cnvtr |
Data Sheet |
|
|
||||||||||
