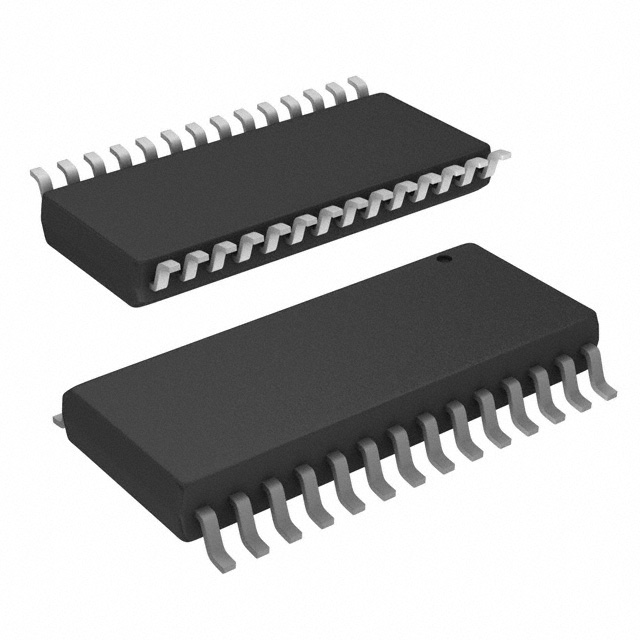

DAC712U

16-bit, resolution D/A converter, 28-SOIC, 6μs, 750mW, –1V to +VCC –0.7V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $11.20~25.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $11.20~25.90

PartNumber:: DAC712U

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:DAC712U
US $11.20 - 25.90
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

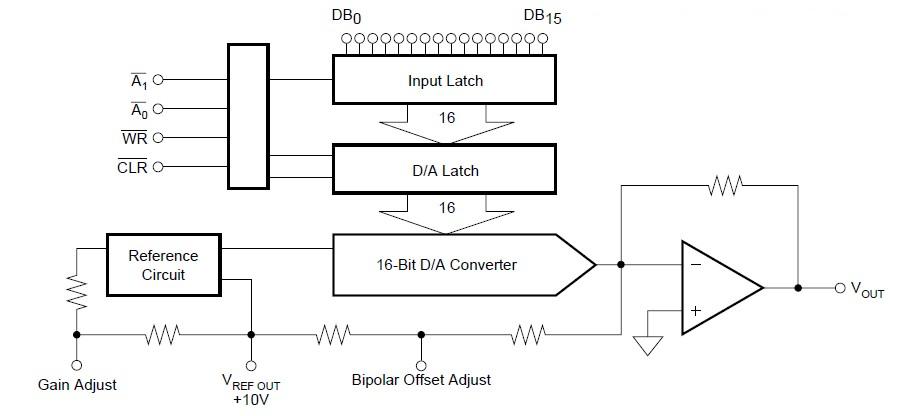

The DAC712U is a complete 16-bit resolution D/A converter with 16 bits of monotonicity over temperature. The DAC712U has a precision +10V temperature compensated voltage reference, ±10V output amplifier and 16-bit port bus interface. The digital interface of the DAC712U is fast, 60ns minimum write pulse width, is double-buffered and has a CLEAR function that resets the analog output to bipolar zero. GAIN and OFFSET adjustment inputs of the DAC712U are arranged so that they can be easily trimmed by external D/A converters as well as by potentiometers.

Parametrics

DAC712U absolute maximum ratings: (1)+VCC to COMMON: 0V, +17V; (2)–VCC to COMMON: 0V, –17V; (3)+VCC to –VCC: 34V; (4)Digital Inputs to COMMON: –1V to +VCC –0.7V; (5)External Voltage Applied to BPO and Range Resistors: ±VCC; (6)VREF OUT: Indefinite Short to COMMON; (7)VOUT: Indefinite Short to COMMON; (8)Power Dissipation: 750mW; (9)Storage Temperature: –60℃ to +150℃; (10)Lead Temperature (soldering, 10s): +300℃.

Features

DAC712U features: (1)High-speed 16-bit paralledoublebuffered interface; (2)Voltage output: ±10V; (3)13-, 14-, and 15-bit linearity grades; (4)16-bit monotonic over temperature (L grade); (5)Power dissipation: 600mW max; (6)Gain and offset adjust: Convenient for Auto-CaD/A Converters; (7)28-lead dip and soic packages.
