Product Summary
The CS5343-CZZ is a complete analog-to-digital converter for digital audio systems. It performs sampling, analog-to-digital conversion, and anti-alias filtering, generating 24-bit values for both left and right inputs in serial form at sample rates up to 108 kHz per channel.
Parametrics
CS5343-CZZ absolute maximum ratings: (1)DC Power Supplies, VA: -0.3 to +6.0 V; (2)Input Current, Iin: -10 to +10 mA; (3)Input Voltage, VIN: -0.7 to VA+0.7 V; (4)Ambient Operating Temperature (Power Applied), TA: -50 to +115℃; (5)Storage Temperature, Tstg: -65 to +150℃.
Features
CS5343-CZZ features: (1)Advanced Multi-Bit △Σ Architecture; (2)24-bit Conversion; (3)Supports Audio Sample Rates Up to 108 kHz; (4)98 dB Dynamic Range at 5 V; (5)-90 dB THD+N; (6)Low-Latency Digital Filter; (7)High-Pass Filter to Remove DC Offsets; (8)Single +3.3 V or +5 V Power Supply; (9)Power Consumption Less Than 50 mW; (10)Master or Slave Operation; (11)Slave Mode Speed Auto-Detect; (12)Master Mode Default Settings; (13)256x or 384x MCLK/LRCK Ratio; (14)CS5343 Supports I2S Audio Format; (15)CS5344 Supports Left-Justified Audio Format.

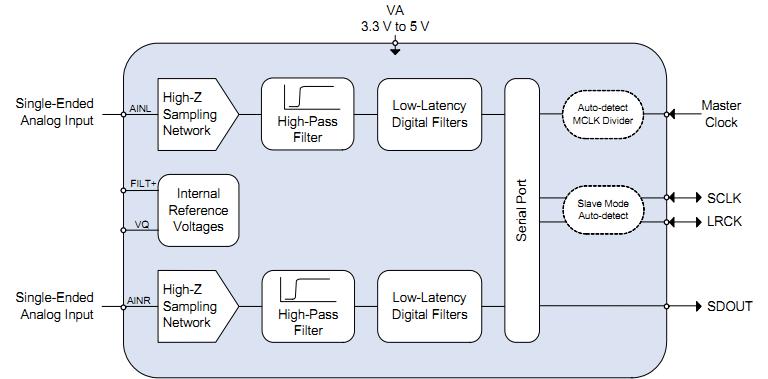

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS5343-CZZ |
Cirrus Logic |
Audio A/D Converter ICs 98dB 24-Bit 96kHz Stereo ADC |
Data Sheet |
|
|
||||||||||||
|
CS5343-CZZR |
Cirrus Logic |
Audio A/D Converter ICs IC 98dB 24-bit 96kHz Stereo ADC |
Data Sheet |
|
|
||||||||||||
