Product Summary
The CGS74LCT2524MX is a minimum skew clock driver. It is a 3V option of the current CGS74CT2524 Minimum Skew Clock Driver and is designed for Clock Generation and Support (CGS) applications operating at low voltage, high frequencies. This device CGS74LCT2524MX guarantees minimum output skew across the outputs of a given device.
Parametrics
CGS74LCT2524MX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to 7.0V; (2)DC Input Voltage Diode Current (IIK): +20 mA; (3)DC Input Voltage (VI): -0.5V to VCC+0.5V; (4)DC Output Diode Current (IO): -20 mA; (5)DC Output Voltage (VO): -0.5V to VCC+0.5V; (6)DC Output Source or Sink Current(IO): ±50 mA; (7)DC VCC or Ground Current per Output Pin (ICC or IGND): ±50 mA; (8)Storage Temperature (TSTG): -65 to +150℃.
Features
CGS74LCT2524MX features: (1)Ideal for low power/low noise high speed applications; (2)Guaranteed: 300 ps pin-to-pin skew (tOSHL and tOSLH); (3)Implemented on National’s FACT family process; (4)1 input to 4 outputs low skew clock distribution; (5)Symmetric output current drive: 12 mA IOH/IOL; (6)Industrial temperature of -40 to +85℃; (7)8-pin SOIC package; (8)Low dynamic power consumption above 20 MHz; (9)Guaranteed 2 kV ESD protection.

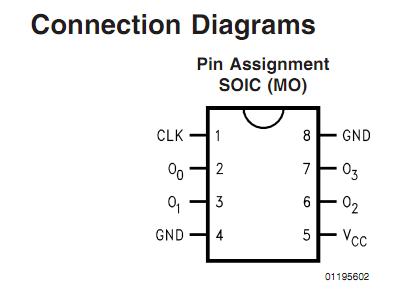

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CGS74LCT2524MX |
IC CLOCK BUFFER 1:4 75MHZ 8-SOIC |
Data Sheet |
