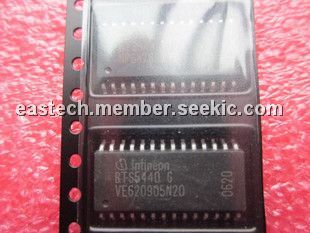

BTS5440G

SOP, N channel, vertical power MOSFET , charge pump, Thermal Shutdown, -5 to +10 mA, -10 to 16V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.11~3.55 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.11~3.55

PartNumber:: BTS5440G

Brand:: Infineon Technologies AG - Infineon | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-09

From Other Seller

Part Number:BTS5440G
US $2.11 - 3.55
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

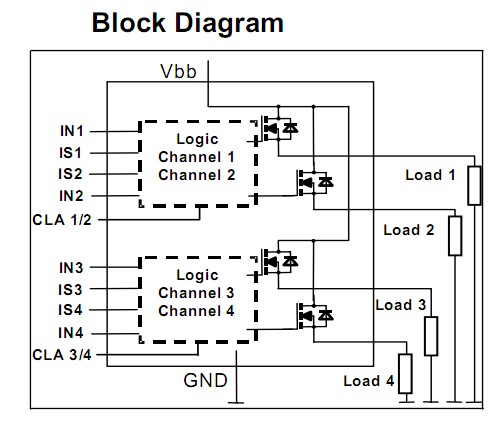

The BTS5440G is an N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology.

Parametrics

BTS5440G absolute maximum ratings: (1)Supply voltage (overvoltage protection see page 6): 28 V; (2)Supply voltage for full short circuit protection;Tj = -40 to 150℃: 28 V; (3)Maximum voltage across DMOS: 52 V; (4)Operating temperature range: -40 to +150 ℃; (5)Storage temperature range: -55 to +150℃; (6)Dynamical temperature rise at switching: 60 K; (7)Power dissipation6) (DC), all channels active, T = 85℃: 1.6 W; (8)Continuous input voltage: -10 to 16 V; (9)Voltage at current limit adjustment pin: -10 to 16V; (10)Current through current limit adjustment pin: ±5.0 mA; (11)Current through input pin (DC): ±5.0 mA; (12)Current through sense pin (DC): -5 to +10 mA.

Features

BTS5440G features: (1)Providing embedded protective functions; (2)Extern adjustable current limitation; (3)Very low standby current; (4)CMOS compatible input; (5)Improved electromagnetic compatibility (EMC); (6)Stable behaviour at low battery voltage; (7)Reverse battery protection with external resistor; (8)Short circuit protection; (9)Overload protection; (10)Current limitation; (11)Thermal Shutdown; (12)Overvoltage protection with external resistor; (13)Loss of GND and loss of Vbb protection; (14)Electrostatic discharge Protection (ESD).
