Product Summary
The ATMEGA32U4-MU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA32U4-MU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATMEGA32U4-MU absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin except RESET; (4)with respect to Ground: -0.5V to VCC+0.5V; (5)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (6)Maximum Operating Voltage: 6.0V; (7)DC Current per I/O Pin: 40.0 mA; (8)DC Current VCC and GND Pins: 200.0 mA and 400.0 mA TQFP/MLF.
Features
ATMEGA32U4-MU features: (1)Complies fully with Universal Serial Bus Specification Rev 2.0; (2)Supports data transfer rates up to 12 Mbit/s and 1.5 Mbit/s; (3)Endpoint 0 for Control Transfers: up to 64-bytes; (4)6 Programmable Endpoints with IN or Out Directions and with Bulk, Interrupt or Isochronous Transfers; (5)Configurable Endpoints size up to 256 bytes in double bank mode; (6)Fully independent 832 bytes USB DPRAM for endpoint memory allocation; (7)Suspend/Resume Interrupts; (8)CPU Reset possible on USB Bus Reset detection; (9)48 MHz from PLL for Full-speed Bus Operation; (10)USB Bus Connection/Disconnection on Microcontroller Request; (11)Crystal-less operation for Low Speed mode.

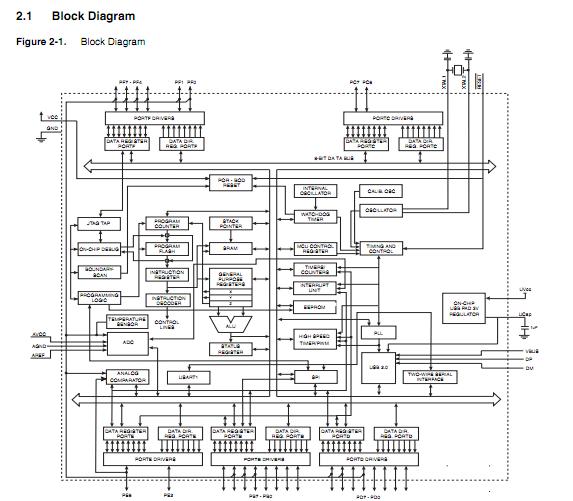

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATMEGA32U4-MU |
Atmel |
8-bit Microcontrollers (MCU) AVR USB 32K FLASH INDUSTRIAL |
Data Sheet |
|
|
||||||||||||
|
ATMEGA32U4-MUR |
Atmel |
8-bit Microcontrollers (MCU) USB 16K FLASH 16 MHz |
Data Sheet |
|
|
||||||||||||
