Product Summary
The ATF-35143-TR1G is a high dynamic range, low noise, PHEMT housed in a 4-lead SC-70 (SOT-343) surface mount plastic package. The applications of the ATF-35143-TR1G are (1)Low Noise Amplifier for Cellular/PCS Handsets; (2)LNA for WLAN, WLL/RLL, LEO, and MMDS Applications; (3)General Purpose Discrete pHEMT for Other Ultra Low Noise Applications.
Parametrics
ATF-35143-TR1G absolute maximum ratings: (1)VDS Drain - Source Voltage: 5.5V; (2)VGS Gate - Source Voltage: -5V; (3)VGD Gate Drain Voltage: -5V; (4)IDS Drain Current: Idss mA; (5)Pdiss Total Power Dissipation: 300mW; (6)Pin max RF Input Power: 14dBm; (7)TCH Channel Temperature: 160℃; (8)TSTG Storage Temperature: -65 to 160℃; (9)θjc Thermal Resistance: 310℃/W.
Features
ATF-35143-TR1G features: (1)Low Noise Figure; (2)Excellent Uniformity in Product Specifications; (3)Low Cost Surface Mount Small Plastic Package SOT-343 (4 lead SC-70); (4)Tape-and-Reel Packaging Option Available.

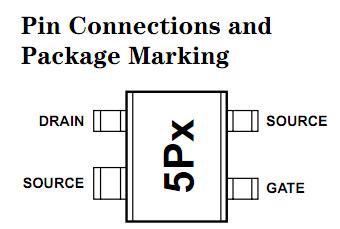

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ATF-35143-TR1G |
Avago Technologies |
Transistors RF GaAs Transistor GaAs Low Noise |
Data Sheet |
|
|
|||||||||||||
