Product Summary
The AT-30511-TR1G is a high performance NPN bipolar transistor that has been optimized for maximum fT at low voltage operation, making them ideal for use in battery powered applications in wireless markets. The ATAT-30511-TR1G places the same die in the higher performance 4 lead SOT-143. Both packages are industry standard, and compatible with high volume surface mount assembly techniques.
Parametrics
AT-30511-TR1G absolute maximum ratings: (1)VEBO Emitter-Base Voltage V 1.5; (2)VCBO Collector-Base Voltage V 11; (3)VCEO Collector-Emitter Voltage V 5.5; (4)IC Collector Current mA 8; (5)PT Power Dissipation mW 100; (6)Tj Junction Temperature 150℃; (7)TSTG Storage Temperature -65 to 150℃.
Features
AT-30511-TR1G features: (1)High Performance Bipolar Transistor Optimized for Low Current, Low Voltage Operation; (2)900 MHz Performance; (3)Characterized for End-Of-Life Battery Use (2.7 V); (4)SOT-23 and SOT-143 SMT Plastic Packages; (5)Tape-And-Reel Packaging Option Available.

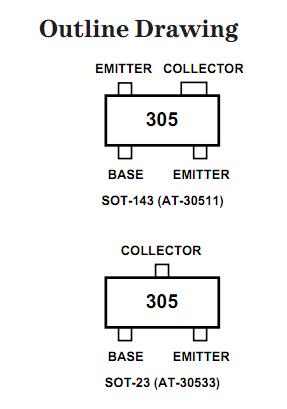

Diagrams

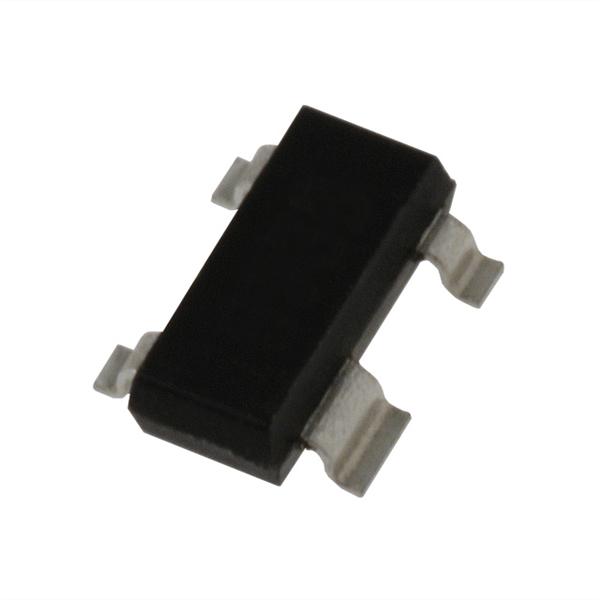

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT-30511-TR1G |
Avago Technologies |
Transistors Bipolar (BJT) Transistor Si Low Current |
Data Sheet |
|
|
||||||||||||||
