Product Summary

The QU80386EXTC33 embedded processor is a highly integrated, 32-bit, fully static processor optimized for embedded control applications. With a 16-bit external data bus, a 26-bit external address bus, and Intel System Management Mode (SMM), the QU80386EXTC33 brings the vast software library of Intel386 architecture to embedded systems. It provides the performance benefits of 32-bit programming with the cost savings associated with 16-bit hardware systems.

Parametrics

QU80386EXTC33 absolute maximum ratings: : (1)Storage Temperature: –65℃ to +150℃; (2)Supply Voltage with Respect to VSS: –0.5 V to 6.5 V; (3)Voltage on Other Pins: –0.5 V to VCC + 0.5 V; (4)VCC (Digital Supply Voltage): 4.5 V to 5.5 V; (5)TCASE (Case Temperature Under Bias): TCASE(MIN): -40℃; TCASE(MAX): (see Figures 4 and 5); (6)FOSC (Operating Frequency): 0 MHz to 33 MHz.

Features

QU80386EXTC33 features: (1)Static Intel386 CPU Core; (2)Transparent Power-management System Architecture; (3)Full 32-bit Internal Architecture; (4)Runs Intel386 Architecture Software in a Cost-effective 16-bit Hardware Environment; (5)On-chip Debugging Support Including Breakpoint Registers; (6)Complete System Development Support; (7)High Speed CHMOS Technology; (8)Two Package Types; (9)Integrated Peripheral Functions.

Diagrams

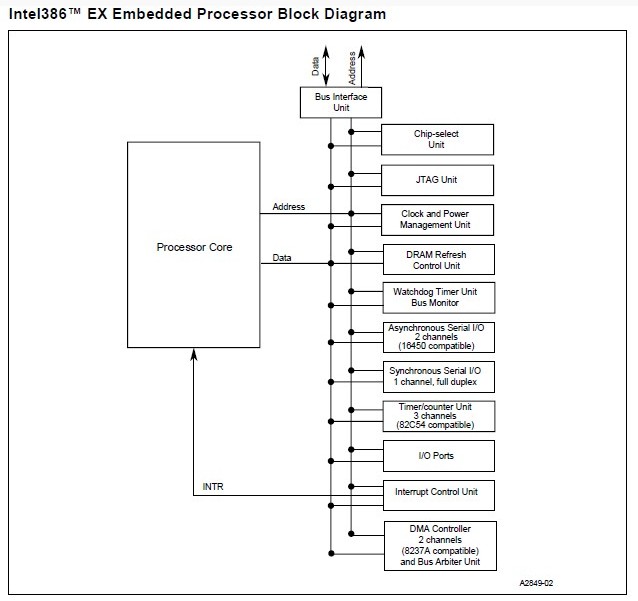

QU80386EXTC33 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

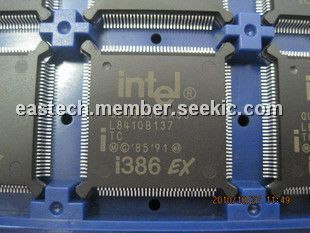

QU80386EXTC33
QU80386EXTC33


IC INT PROC 5V 33MHZ 132QFP

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
QU80386EXTB25
QU80386EXTB25


IC INT PROC 3.3V 25MHZ 132QFP

Data Sheet

Negotiable
QU80386EXTC25
QU80386EXTC25


IC INT PROC 5V 25MHZ 132QFP

Data Sheet

Negotiable
QU80386EXTC33
QU80386EXTC33


IC INT PROC 5V 33MHZ 132QFP

Data Sheet

Negotiable
QU80386SXTA25
QU80386SXTA25


IC MPU 32-BIT 5V 25MHZ 100-QFP

Data Sheet

Negotiable
QU80386SXTA33
QU80386SXTA33


IC MPU 32-BIT 5V 33MHZ 100-QFP

Data Sheet

Negotiable
QU80386SXTA40
QU80386SXTA40


IC MPU 32-BIT 5V 40MHZ 100-QFP

Data Sheet

Negotiable
