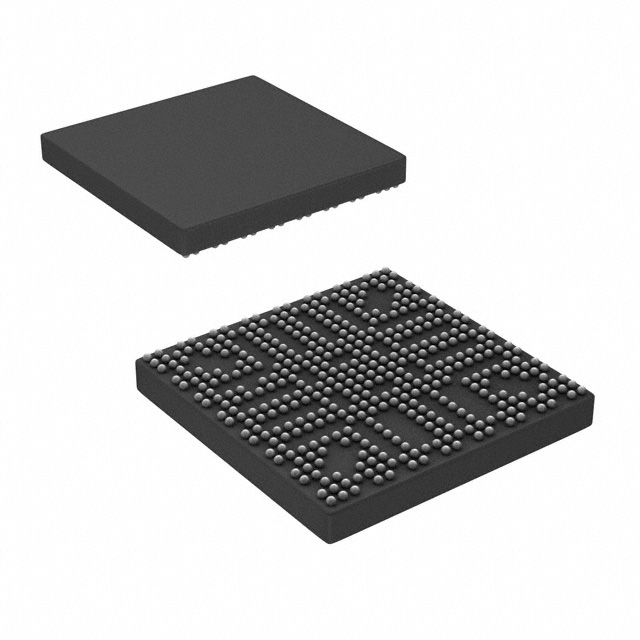

Product Summary

The AM3715CUS100 is a high-performance, applications processor based on the enhanced device architecture. It is integrated on TI’s advanced 45-nm process technology. This architecture is designed to provide best in class ARM and Graphics performance while delivering low power consumption. This balance of performance and power allow the AM3715CUS100 to support the following example applications: (1)Portable Data Terminals; (2)Navigation; (3)Auto Infotainment; (4)Gaming; (5)Medical Imaging; (6)Home Automation; (7)Human Interface; (8)Industrial Control; (9)Test and Measurement; (10)Single board Computers.

Parametrics

AM3715CUS100 absolute maximum ratings: (1)vdd_mpu_iva Supply voltage range for MPU: –0.5 to 1.5 V; (2)vdd_core Supply voltage range for core domain: –0.5 to 1.5 V; (3)vdda_wkup_bg_bb Supply voltage range for wake-up domain (internalLDO): –0.5 to 2.6 V; (4)vdda_dplls_dll Supply voltage for MPU, Core DPLLs and DLL: –0.5 to 2.1 V; (5)vdda_dpll_per Supply voltage for DPLLs (peripherals): –0.5 to 2.1 V; (6)vdds_sram Supply voltage for SRAM LDOs: –0.5 to 2.6 V; (7)vdda_dac Supply voltage for video buffers and DAC: –0.5 to 2.10 V; (8)vdds Supply voltage for 1.8-V I/O macros: –0.5 to 2.45 V; (9)vdds_mem Supply voltage for memory buffers: –0.5 to 2.45 V; (10)Iclamp Clamp current for an input or output: –20 to 20 mA; (11)TSTG Storage temperature range: –65 to 150℃.

Features

AM3715CUS100 features: (1)Tile Based Architecture Delivering up to 20 MPoly/sec; (2)Universal Scalable Shader Engine: Multi-threaded Engine Incorporating Pixel and Vertex Shader Functionality; (3)Industry Standard API Support: OpenGLES 1.1 and 2.0, OpenVG1.0; (4)Fine Grained Task Switching, Load Balancing, and Power Management; (5)Programmable High Quality Image Anti-Aliasing.

Diagrams

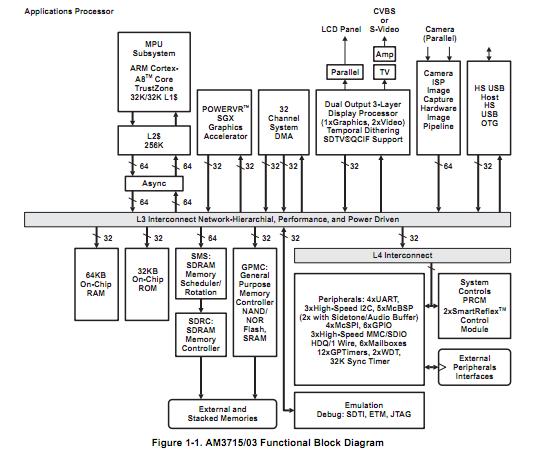

AM3715CUS100 block diagram
