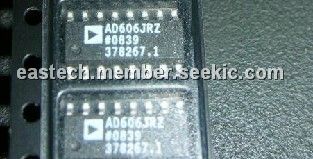

AD606JRZ-REEL

50 MHz, 80 dB, Demodulating Logarithmic Amplifier, 16-SOP, AD606JRZ-REEL

Rated 5 Rating 5 | reviews | Write a review

Price:: US $29.90~33.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $29.90~33.90

PartNumber:: AD606JRZ-REEL

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Teven's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-27

From Other Seller

Part Number:AD606JRZ-REEL
US $29.90 - 33.90
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

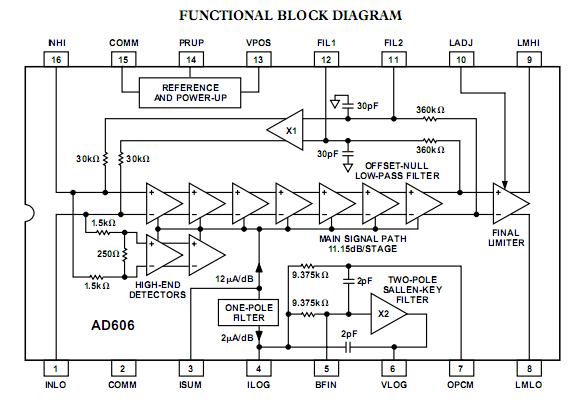

The AD606JRZ-REEL is a complete, monolithic logarithmic amplifier using a 9-stage“successive-detection technique. The AD606JRZ-REEL provides both logarithmic and limited outputs. The logarithmic output is from a three-pole post-demodulation low-pass filter and provides a loadable output voltage of +0.1 V dc to +4 V dc. The logarithmic scaling is such that the output is +0.5 V for a sinusoidal input of –75 dBm and +3.5 V at an input of +5 dBm; over this range the logarithmic linearity is typically within ±0.4 dB. The applications of the AD606JRZ-REEL are Ultrasound and Sonar Processing, Phase-Stable Limiting Amplifier to 100 MHz, Received Signal Strength Indicator (RSSI), Wide Range Signal and Power Measurement.

Parametrics

AD606JRZ-REEL absolute maximum ratings: (1)Supply Voltage VPOS:+9 V; (2)Internal Power Dissipation:600 mW; (3)Operating Temperature Range:0℃ to +70℃; (4)Storage Temperature Range:–65℃ to +150℃; (5)Lead Temperature Range (Soldering 60 sec):+300℃.
