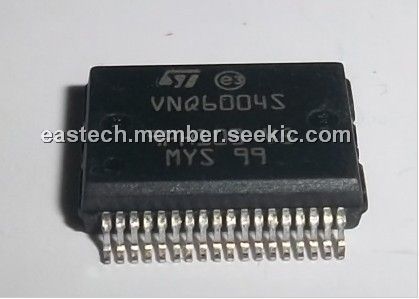

Product Summary

The VNQ6004S-E is a quad HSD formed by assembling two VND600 chips in the same SO-28 package. The VNQ6004S-E is intended for driving any type of multiple loads with one side connected to ground. The VNQ6004S-E has four independent channels and four analog sense outputs which deliver currents proportional to the outputs currents.

Parametrics

VNQ6004S-E absolute maximum ratings: (1)Supply voltage (continuous):41 V; (2)Reverse supply voltage (continuous):-0.3 V; (3)Output current (continuous), for each channel:15 A; (4)Reverse output current (continuous), for each channel:-15 A; (5)Input current:±10 mA; (6)Current sense maximum voltage: -3 to +15V; (7)Ground current at Tpins ≤ 25℃ (continuous):-200 mA; (8)Power dissipation (per island) at Tlead=25℃:6.25 W; (9)Junction operating temperature:Internally Limited; (10)Storage temperature:-55 to 150℃.

Features

VNQ6004S-E features: (1)DC short circuit current: 25A ; (2)CMOS compatible inputs ; (3)proportional load current sense; (4)undervoltage & overvoltage shut-down; (5)overvoltage clamp; (6)thermal shut-down; (7)current limitation; (8)very low stand-by power dissipation; (9)protection against: loss of ground & loss of VCC ; (10)reverse battery protection.

Diagrams

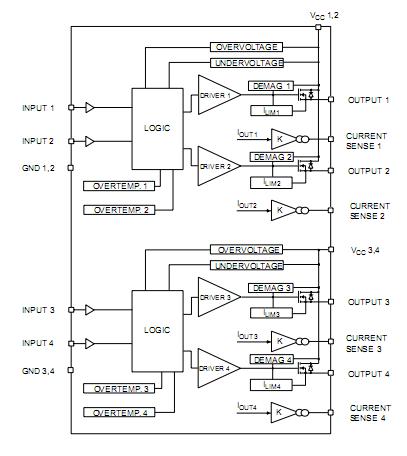

VNQ6004S-E block diagram
