Product Summary

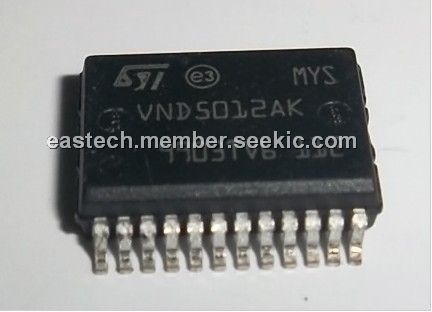

The VN5012AK-E is a Single channel high side driver with analog current sense for automotive applications. It is intended for driving resistive or inductive loads with one side connected to ground. The VN5012AK-E integrates an analog current sense which delivers a current proportional to the load current (according to a known ratio) when CS_DIS is driven low or left open. Output current limitation protects the VN5012AK-E in overload condition. In case of long overload duration, the device limits the dissipated power to safe level up to thermal shutdown intervention.
Parametrics
VN5012AK-E absolute maximum ratings: (1)DC supply voltage:41V; (2)Reverse DC supply voltage:0.3V; (3)DC reverse ground pin current:200mA; (4)DC output current:Internally limited; (5)Reverse DC output current:-30A; (6)DC input current:-1 to 10mA; (7)DC current sense disable input current:-1 to 10mA; (8)DC reverse CS pin current:200mA; (9)Charge device model:750V; (10)Junction operating temperature:-40 to 150℃; (11)Storage temperature:-55 to 150℃.
Features
VN5012AK-E features: (1)Inrush current active management by power limitation; (2)Very low stand-by current; (3)3.0V CMOS compatible input; (4)Optimized electromagnetic emission; (5)Very low electromagnetic susceptibility; (6)In compliance with the 2002/95/EC european directive; (7)Proportional load current sense; (8)High current sense precision for wide range currents; (9)Current sense disable; (10)Thermal shutdown indication; (11)Very low current sense leakage; (12)Undervoltage shut-down; (13)Overvoltage clamp; (14)Load current limitation; (15)Self limiting of fast thermal transients; (16)Protection against loss of ground and loss of VCC; (17)Thermal shut down.

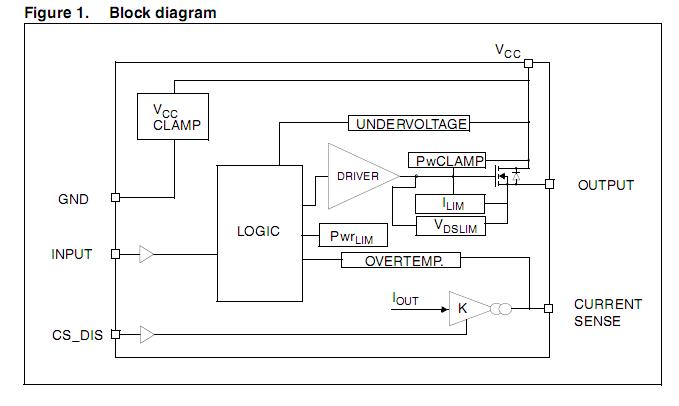

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VN5012AK-E |
STMicroelectronics |
Power Driver ICs Sngl Ch HiSide Drivr |
Data Sheet |
|
|
||||||||||||
